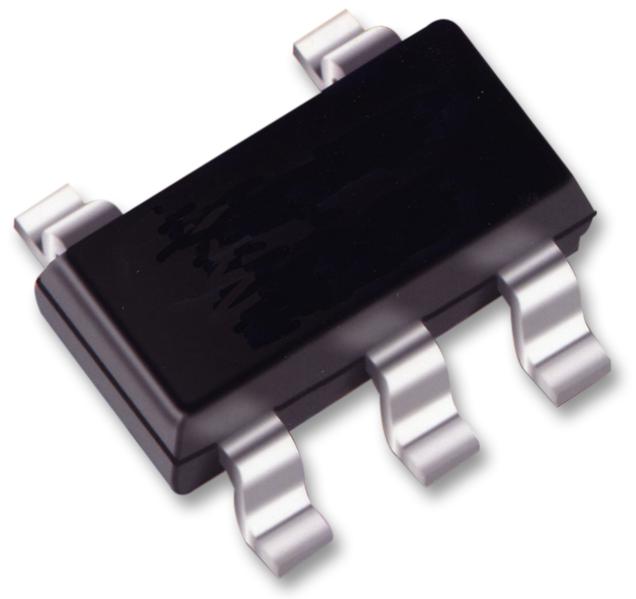

NCV8114ASN300T1G
LDO Regulator, 300 mA, Low Iq 3.0V AD. ONSSPCLDO;
Click image to enlarge
Manufacturer:onsemi
Product Category:
Power Management, Voltage Regulators, LDO Voltage Regulators
Avnet Manufacturer Part #: NCV8114ASN300T1G
Secondary Manufacturer Part#: NCV8114ASN300T1G
-
RoHS 10 Compliant -
Tariff Charges
The NCV8114ASN300T1G from On Semiconductor is a 300mA CMOS low dropout regulator in 5 pin TSOP package. This LDO provides the engineer with a very stable, accurate voltage with low noise suitable for space constrained, noise sensitive applications. In order to optimize performance for battery operated portable applications the NCV8114 employs the dynamic quiescent current adjustment for very low IQ consumption at no load. Typical application include parking camera modules, wireless handsets, wireless LAN, Bluetooth®, Zigbee®, automotive infotainment systems and other battery powered applications.
- Operating input voltage range from 1.7V to 5.5V
- Fixed output voltage is 3V
- Automotive AEC-Q100 qualified
- Very low quiescent current of 50µA (typ)
- Standby current consumption of 0.1µA (typ)
- Low dropout of 160mV typical at 300mA, ±1% accuracy at room temperature
- 75dB at 1KHz high power supply ripple rejection
- Thermal shutdown and current limit protections
- Stable with a 1µF ceramic output capacitor
- Operating Temperature range from -40°C to 125°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 5.5 V | ||
| 1.7 V | ||
| 1 | ||
| 5 | ||
| 125 °C | ||
| -40 °C | ||
| 3V 300mA LDO Voltage Regulators |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8542390001 |
| Schedule B: | 8542390000 |
