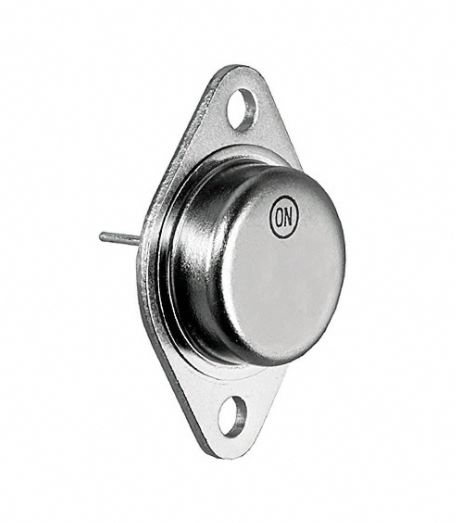

MJ15003G
Bipolar Transistor, NPN, 140 V, 20 A. ONSSPCTRNSTLT1T0R;
Click image to enlarge
Manufacturer:onsemi
Product Category:
Discretes, Bipolar Transistors, Single Bipolar Transistors
Avnet Manufacturer Part #: MJ15003G
Secondary Manufacturer Part#: MJ15003G
-
RoHS 10 Compliant -
Tariff Charges
The MJ15003G is a Power Transistor designed for high power audio, disk head positioners and other linear applications. High safe operating area and high DC current gain. Ideal for low distortion complementary designs.
- 140VDC Collector-base voltage
- 0.70°C/W Junction-to-case thermal resistance
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 140 V | ||
| 20 A | ||
| 25 | ||
| 3 | ||
| 200 °C | ||
| 250 W | ||
| TO-204AA | ||
| Through Hole | ||
| NPN | ||
| 2 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
