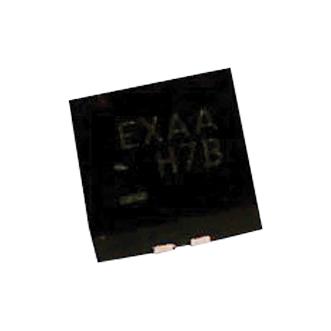

FSA2275UMX

The FSA2275 is a high-performance, Double-Pole Double-Throw (DPDT) analog switch with negative swing audio capability. The FSA2275 features ultra-low audio RON of 0.5O (typical) at 2.5 V VCC. The FSA2275 operates over a VCC range of 2.5 V to 5.5 V, is fabricated with sub-micron CMOS technology to achieve fast switching speeds, and is designed for break-before-make operation. To minimize pop and click during operation, the turn on ramp time is selectable using an external capacitor (C_EXT). The FSA2275 features THD+N specifications that target a Hi-Fidelity audio quality into both 32 O headphones and line out type loads (>600 O).

• VDD Operating Range: 2.5 to 5.5 V
• External Capacitor Connection for Pop and Click noise suppression
• Power-Off Protection on Common Ports
• RON = 0.5 O (Typ.) at 2.5 V VDD
• THD+N = -105 dB; 2 VRMS, 20 kO Load; f=1 kHz
• XTALK = -134 dB at 1 VRMS, 50 O Load; f = 1 kHz
• Off Isolation = -103 dB at 1 VRMS, 50 O Load; f = 1 kHz
• 12-Lead UMLP 1.8 mm x 1.8 mm
