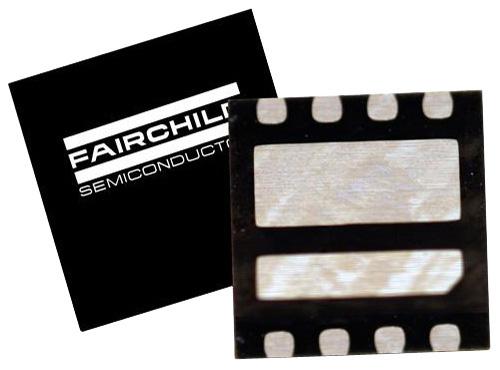

FDMC8200
Dual N-Channel PowerTrench® MOSFET 30V, 9.5mO and 20mO
Click image to enlarge
Manufacturer:onsemi
Product Category:
Discretes, FETs, Single MOSFETs
Avnet Manufacturer Part #: FDMC8200
Secondary Manufacturer Part#: FDMC8200
-
RoHS 10 Compliant -
Tariff Charges
The FDMC8200 is a PowerTrench® dual N-channel MOSFET in a dual Power33 package. The switch node has been internally connected to enable easy placement and routing of synchronous buck converters. The control MOSFET (Q1) and synchronous MOSFET (Q2) have been designed to provide optimal power efficiency. The device is suitable for use with mobile computing, mobile internet devices and general purpose point of load applications.
- Q1: N-Channel
- Max. RDS(on) = 20 mO at VGS = 10 V, ID = 6A
- Max. RDS(on) = 32 mO at VGS = 4.5 V, ID = 5A
- Q2: N-Channel
- Max. RDS(on) = 9.5 mO at VGS = 10 V, ID = 9A
- Max. RDS(on) = 13.5 mO at VGS = 4.5 V, ID = 7A
- RoHS Compliant
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Dual N Channel | ||
| 23|45 | ||
| 20 | ||
| 30 | ||
| 8 | ||
| 150 °C | ||
| 2.2 | ||
| Power 33 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8541290095 |
| Schedule B: | 8541290080 |
Factory Lead Time:
