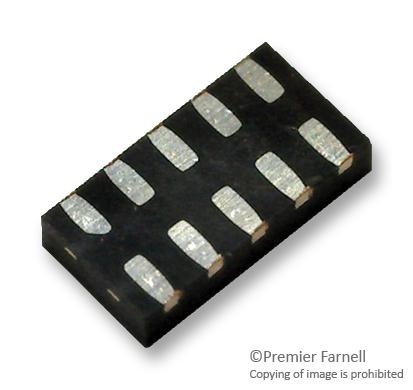

EMI8142MUTAG
- Reverse working voltage of 3.3V
- Maximum breakdown voltage is 9V at 1mA
- Channel leakage current is 1µA
- Total insertion loss DMLOSS < 2.5dB at 2.5GHz
- Large differential mode cutoff frequency f3dB > 5GHz
- High common mode stop band attenuation: > 10dB at 500MHz, 15dB at 700MHz
- Low channel resistance is 6ohm
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Gold over Nickel Palladium | ||
| 260 | ||
| 15 dB | ||
| Surface Mount | ||
| MSL 1 - Unlimited | ||
| -40 to 85 °C | ||
| 10 | ||
| 1.35 mm | ||
| 2.2 x 1.35 x 0.45(Max) | ||
| 0.45 mm | ||
| 2.2 mm | ||
| No | ||
| XDFN | ||
| Flat Style | ||
| Common Mode Filter with ESD Protection |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
