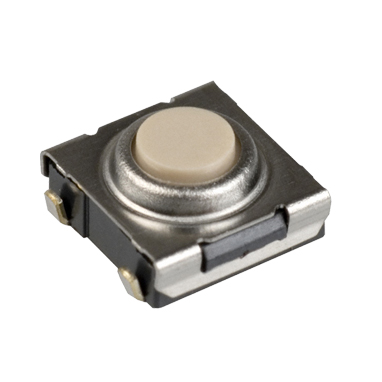

B3SN-3012P
Switch Tactile N.O. SPST Round Button J-Bend 0.05A 24VDC 50000Cycle 1.57N SMD Embossed Tape
Click image to enlarge
Manufacturer:Omron
Product Category:
Electromechanical, Switches, Tactile Switches
Avnet Manufacturer Part #: B3SN-3012P
Secondary Manufacturer Part#: B3SN-3012P
-
RoHS 10 Compliant -
Tariff Charges
Sealed Surface-mounting Switches Sealed Structure for High Reliability. Available on Embossed Tape
• Sealed construction conforming to IP67 (IEC- 60529) provides high reliability in locations exposed to dust or water. (* Excluding the terminal section.) • Available with ground terminals for protection against static electricity. • Use of a stainless-steel spring provides a crisp clicking action. • Gold plated version enables stable contact and insulation over long periods of time. • Available in embossed taping packages for automatic mounting.
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Round Button | ||
| Gold | ||
| 250 | ||
| 50 mA | ||
| 24 V | ||
| 50000 Cycles | ||
| Surface Mount | ||
| 1.57 N | ||
| -25 to 70 °C | ||
| SPST | ||
| 6.5 x 7 x 3.1 mm | ||
| N.O. | ||
| J-Bend |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
