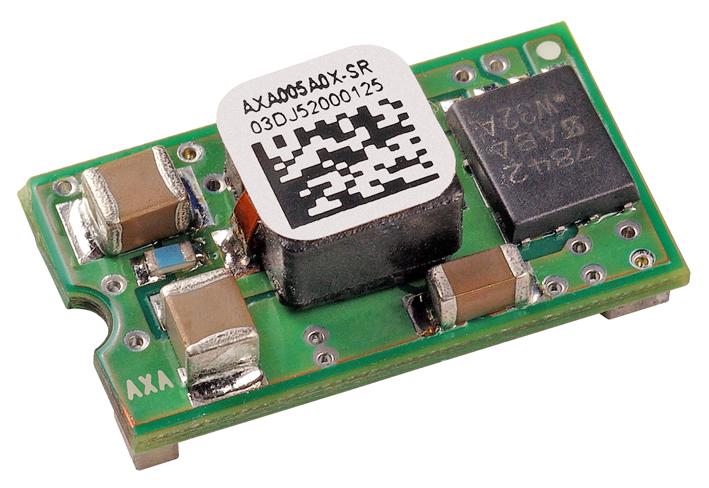

AXA005A0X-SRZ

Austin MicroLynxTM 12Vdc SIP (single in-line package) power modules are non-isolated dc-dc converters that can deliver up to 5A of output current with full load efficiency of 89% at 3.3V output. These modules provide precisely regulated output voltage programmable via external resistor from 0.75Vdc to 5.5Vdc over a wide range of input voltage (VIN = 10 - 14V). Their open-frame construction and small footprint enable designers to develop cost- and space-efficient solutions. Standard features include remote On/Off, programmable output voltage and overcurrent protection.

• Compliant to RoHS EU Directive 2011/65/EU (-Z versions)
• Compliant to RoHS EU Directive 2011/65/EU under exemption 7b (Lead solder exemption). Exemption 7b will expire after June 1, 2016 at which time this product will no longer be RoHS compliant (non-Z versions)
• Delivers up to 5A output current
• High efficiency – 89% at 3.3V full load (VIN = 12.0V)
• Small size and low profile: 22.9 mm x 10.2 mm x 6.65 mm (0.9 in x 0.4 in x 0.262 in)
• Low output ripple and noise
• High Reliability: Calculated MTBF = 5.6M hours at 25°C Full-load
• Output voltage programmable from 0.75 Vdc to 5.5Vdc via external resistor
• Line Regulation: 0.3% (typical)
• Load Regulation: 0.4% (typical)
• Temperature Regulation: 0.4 % (typical)
• Remote On/Off
• Output overcurrent protection (non-latching)
• Wide operating temperature range (-40°C to 85°C)
• UL 60950-1Recognized, CSA C22.2 No. 60950-1-03 Certified, and VDE‡
