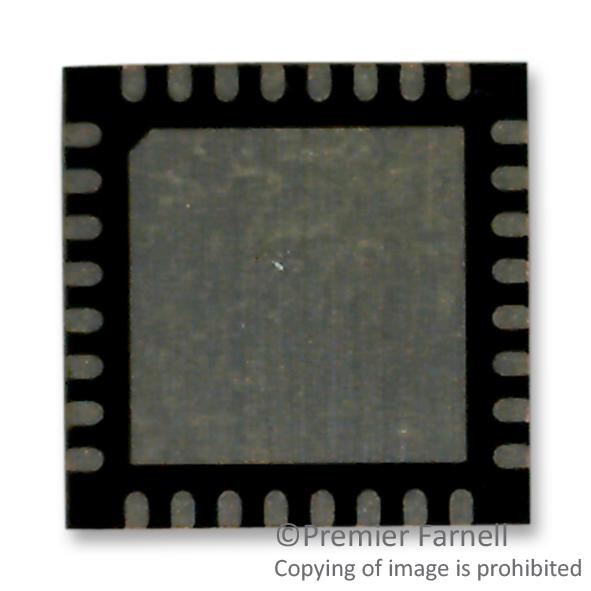

NRF24LU1P-O17Q32-R

The nRF24LU1+ is a unique single chip solution for compact USB dongles. The internal nRF24L01+ 2.4 GHz RF transceiver supports a wide range of applications including PC peripherals, sports accessories and game peripherals. With an air data rate of 2 Mbps combined with full speed USB, supporting up to 12 Mbps, the nRF24LU1+ meets the stringent performance requirements of applications such as wireless mouse, game controllers and media center remote controls with displays.

• nRF24L01+ compatible RF transceiver
• Worldwide 2.4 GHz ISM band operation
• Up to 2 Mbps on air data rate
• Enhanced Shock Burst™ hardware link layer
• Air compatible with nRF24LU1, nRF24LE1,
• nRF24L01+, nRF24L01, nRF2401A, nRF2402, nRF24E1 and nRF24E2
• Low cost external ±60 ppm 16 MHz crystal
• Full speed USB 2.0 compliant device controller
• Up to 12 Mbps USB transfer rate
• 2 control, 10 bulk/interrupt and 2 ISO endpoints
• Dedicated 512 bytes endpoint buffer RAM
• Software controlled pull-up resistor for D+
• PLL for full-speed USB operation
• Voltage regulator, 4.0 to 5.25V supply range
• Enhanced 8-bit 8051 compatible microcontroller
• Drop-in compatibility with nRF24LU1
• Reduced instruction cycle time
• 32-bit multiplication-division unit
• 16 or 32 kbytes of on-chip flash memory
• 2 kbytes of on-chip SRAM
• 6 general purpose digital input/output pi
