PMEG60T20ELRX

Name: PMEG60T20ELRX
Brand: Nexperia
SKU: PMEG60T20ELRX
Availability: InStock

Diode Schottky 60V 2A 2-Pin SOD-123W T/R

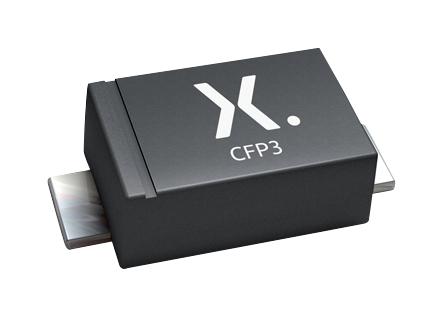

Click image to enlarge

Manufacturer:Nexperia

Product Category: Discretes, Diodes & Rectifiers, Schottky Rectifiers

Avnet Manufacturer Part #: PMEG60T20ELRX

Secondary Manufacturer Part#: PMEG60T20ELRX

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Average Forward Current	2
	Diode Case Style	SOD-123W
	Diode Configuration	Single
	Diode Mounting	Surface Mount
	Forward Surge Current	50
	Forward Voltage Max	620
	No. of Pins	2
	Operating Temperature Max	175 °C
	Qualification	AEC-Q101
	Repetitive Peak Reverse Voltage	60

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	null
ECCN:	EAR99
HTSN:	8541100050
Schedule B:	8541100080

In Stock : 0

Additional inventory

Factory Lead Time: 112 Weeks

Price for: Each

Quantity:

Min:12000 Mult:3000

USD $:
