PMEG100V080ELPDAZ
Schottky Rectifier, 100 V, 8 A, Single, CFP15, 3 Pins, 850 mV

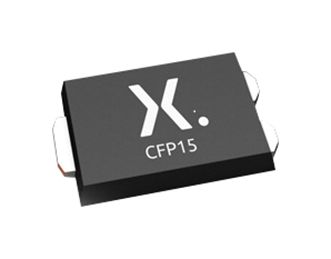

Click image to enlarge
Manufacturer:Nexperia
Product Category:
Discretes, Diodes & Rectifiers, Schottky Rectifiers
Avnet Manufacturer Part #: PMEG100V080ELPDAZ
Secondary Manufacturer Part#: PMEG100V080ELPDAZ
-
RoHS 10 Compliant -
Tariff Charges
Maximum Efficiency General Application (MEGA) Schottky barrier rectifier, encapsulated in a CFP15 (SOT1289) power and flat lead Surface-Mounted Device (SMD) plastic package.
- Average forward current: IF(av) = 8 A
- Reverse voltage: Vr = 100 V
- Low leakage current due to high Schottky barrier technology
- Low forward voltage
- High power capability due to clip-bonding technology and heat sink
- High temperature Tj = 175 °C
- Small and thin SMD power plastic package, typical height 0.78 mm
- AEC-Q101 qualified
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 8 | ||
| SOT-1289 | ||
| Single Dual Anode | ||
| Surface Mount | ||
| 160 | ||
| 850 | ||
| 3 | ||
| 175 °C | ||
| AEC-Q101 | ||
| 100 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 85411000 |
| Schedule B: | 85411000 |
Factory Lead Time:
