NCR402UX
LED Driver Buck 1-CH 38V 0.023A 6-Pin SC-74 T/R

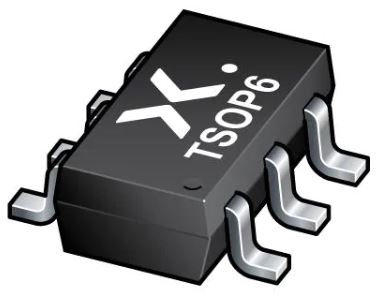

Click image to enlarge
Manufacturer:Nexperia
Product Category:
Power Management, Drivers & Controllers, DC / DC LED Drivers
Avnet Manufacturer Part #: NCR402UX
Secondary Manufacturer Part#: NCR402UX
-
RoHS 10 Compliant -
Tariff Charges
LED driver consisting of resistor-equipped PNP transistor with two diodes on one chip in an SOT457 (SC-74) plastic package.
- Stabilized output current of 20 mA
- High current accuracy at supply voltage variation
- Low voltage overhead of 1.4 V
- Qualified according to AEC-Q101
- Reduces component count and board space
- High power dissipation of 750 mW
- Stabilized output current adjustable up to 65 mA when an external resistor is used
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 40 V | ||
| None | ||
| Tin | ||
| 260 | ||
| 0.017 A | ||
| Surface Mount | ||
| MSL 1 - Unlimited | ||
| 1 | ||
| -55 to 150 °C | ||
| 0.023 A | ||
| Constant Current | ||
| 38 V | ||
| 6TSOP | ||
| 6 | ||
| 3.1(Max) x 1.7(Max) x 1(Max) | ||
| Automotive | ||
| SC-74 | ||
| Buck | ||
| Linear |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8541290075 |
| Schedule B: | 8541290080 |
