74AHCT1G125GV,125
Buffer / Line Driver, 74AHCT1G125, 1 Element, 4.5 V to 5.5 V, 5 Pins, TSOP

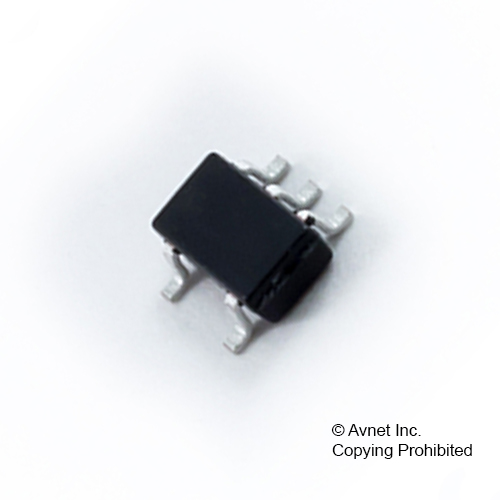

Click image to enlarge
Manufacturer:Nexperia
Product Category:
Logic ICs, Buffers, Transceivers & Line Drivers
Avnet Manufacturer Part #: 74AHCT1G125GV,125
Secondary Manufacturer Part#: 74AHCT1G125GV,125
-
RoHS 10 Compliant -
Tariff Charges
74AHCT1G125GV,125 is a single buffer/line driver with 3-state output. This device inputs are overvoltage tolerant. This feature allows the use of this device as translator in mixed voltage environments. It features ESD protection (HBM: ANSI/ESDA/Jedec JS-001 class 2 exceeds 2000V, CDM: ANSI/ESDA/Jedec JS-002 class C3 exceeds 1000V).
- Wide supply voltage range from 4.5V to 5.5V
- Overvoltage tolerant inputs to 5.5V, high noise immunity
- Symmetrical output impedance, CMOS low power dissipation
- Latch-up performance exceeds 100mA per JESD 78 Class II Level A
- Balanced propagation delays, TTL input level
- Input leakage current is 0.1μA maximum at (VI=5.5V or GND;VCC = 0V to 5.5V, 25°C)
- Supply current is 1μA maximum at (VI=VCC or GND;IO = 0A;VCC = 5.5V, 25°C)
- Propagation delay is 3.4ns typical at (VCC = 4.5V to 5.5V;CL = 15pF, 25°C)
- Operating temperature range from -40°C to +125°C
- 5-lead SC-74A package
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| No | ||
| Single-Ended | ||
| Tin | ||
| AHCT | ||
| Buffer/Line Driver | ||
| 260 | ||
| -8 mA | ||
| 8 mA | ||
| 5.5 V | ||
| 7.5@4.5V to 5.5V ns | ||
| 1 uA | ||
| 4.5 V | ||
| Surface Mount | ||
| MSL 1 - Unlimited | ||
| 1 | ||
| 1 | ||
| 0 | ||
| 1 | ||
| 1 Low | ||
| 1 | ||
| -40 to 125 °C | ||
| 3-State | ||
| 5 | ||
| Non-Inverting | ||
| 3.1 x 1.7 x 1 mm | ||
| 50 pF | ||
| No | ||
| TSOP | ||
| 5 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8542390001 |
| Schedule B: | 8542390000 |
