Name: MYBSP0122BABFT
Brand: Murata
SKU: MYBSP0122BABFT
Availability: InStock

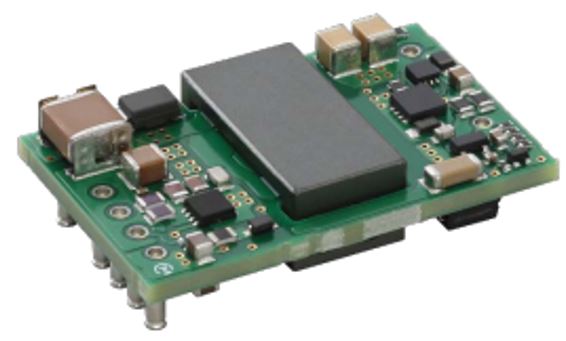

Isolated Surface Mount DC/DC Converter, Industrial & ITE, 25.5 W, 1 Output, Fixed, 12 V, 2.125 A, Regulated, SMD Open Frame

Click image to enlarge

Manufacturer:Murata

Product Category: Power Supplies, DC / DC Converters, Isolated Surface Mount DC / DC Converters

Avnet Manufacturer Part #: MYBSP0122BABFT

Secondary Manufacturer Part#: MYBSP0122BABFT

RoHS 10 Compliant
Tariff Charges

Description

MYBSP0122BABFT is an isolated DC-DC converter with IEEE 802.3at Class 4 PoE PD. Specific applications include consumer equipment, industrial equipment.

25.5W maximum output power
37V to 57V input voltage range
12V typical output voltage
2250V isolation voltage
92.5% efficiency
35.5mm width, 22.4mm length, 10.55mm thickness
Operating temperature range from -40°C to 85°C
2.125A output current
Support type2 PSE indicator, support adapter O-ring

Technical Attributes

Find Similar Parts

	Description	Value
	DC / DC Converter Output Type	Fixed
	DC / DC Converter Type	SMD Open Frame
	Input Voltage DC Max	57 V
	Input Voltage DC Min	37 V
	Input Voltage DC Nom	48 V
	Isolation Voltage	2.25 kV
	No. of Outputs	1
	Output Current - Output 1	2.125 A
	Output Power Max	25.5 W
	Output Regulation	Regulated
	Output Voltage - Output 1	12 V
	Power Supply Applications	Industrial & ITE
	Product Depth	35.5 mm
	Product Height	10.55 mm
	Product Width	22.4 mm
