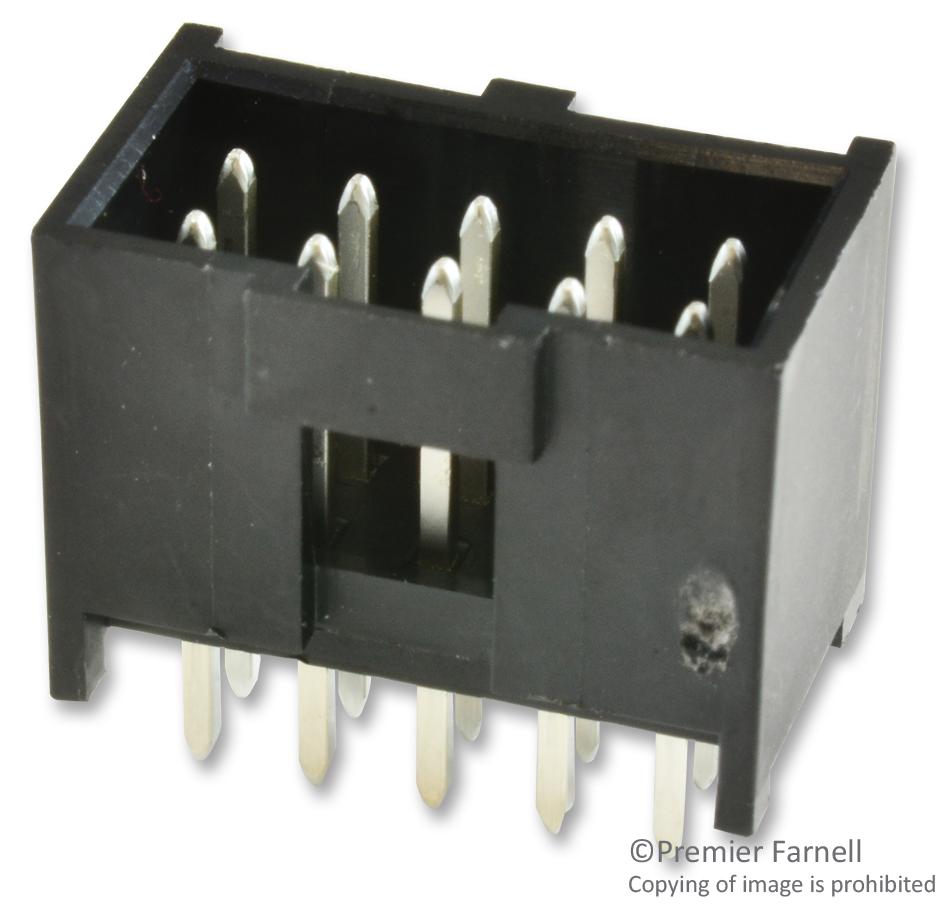

0901301110
Pin Header, 10 Contacts, 2 Rows, 2.54mm, Tin, 3A, Straight, Shrouded, Brass, Wire-to-Board, THT
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, PC Board, Pin & PCB Headers
Avnet Manufacturer Part #: 0901301110
Secondary Manufacturer Part#: 0901301110
-
RoHS 10 Compliant -
Tariff Charges
The 90130-1110 is a 10-way 2-row vertical C-Grid III™ Header with tin-plated brass contacts. It mates with 90142 C-Grid III™ crimp housing. Headers will accept both discrete wire and ribbon cable connectors. The 90130 series header comes with black polyester resin and is ideal for signal and wire-to-board applications.
- Flexibility
- Lock to mating part
- Polarized to mating part
- Shrouded closed ends
- UL94V-0 flammability rating
- Maximum durability of 30 mating cycles
- Maximum current per contact is 3A
- Maximum voltage is 350VAC/DC
- Operating temperature range from -55to +125°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Polyester | ||
| Straight | ||
| Brass | ||
| Tin | ||
| 10 | ||
| 2 | ||
| 2.54 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 85369010 |
| Schedule B: | 85369010 |
