0901190109
Contact, C-Grid III, C-Grid III 90119 Series, Socket, Crimp, 22 AWG, Tin Plated Contacts

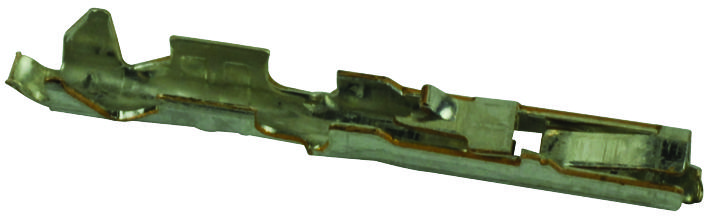

Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: 0901190109
Secondary Manufacturer Part#: 0901190109
-
RoHS 10 Compliant -
Tariff Charges
The 90119-0109 is a C-Grid III™ female socket crimp terminal made of phosphor bronze with tin plated finish. This 90119 series female crimp terminal accepts 24 to 22AWG wire. It can be used with 90156, 90123, 90142, 90143 and 90160 C-Grid III™ modular crimp housings. The terminal is suitable for signal applications.
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| Wire to Board Housing | ||
| Phosphor Bronze | ||
| Tin | ||
| Signal | ||
| Receptacle | ||
| Tin | ||
| 20 mOhm | ||
| 3 A | ||
| Cable Mount | ||
| -55 to 105 °C | ||
| 1.016 um | ||
| 13.15 x 2.1 x 1.9 mm mm | ||
| 90119 Series | ||
| No | ||
| Crimp | ||
| 24 to 22, 24 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
