0430200400
Connector Housing, Dual Row, Panel Mount, Micro-Fit 3.0 43020, Plug, 4 Ways, 3 mm

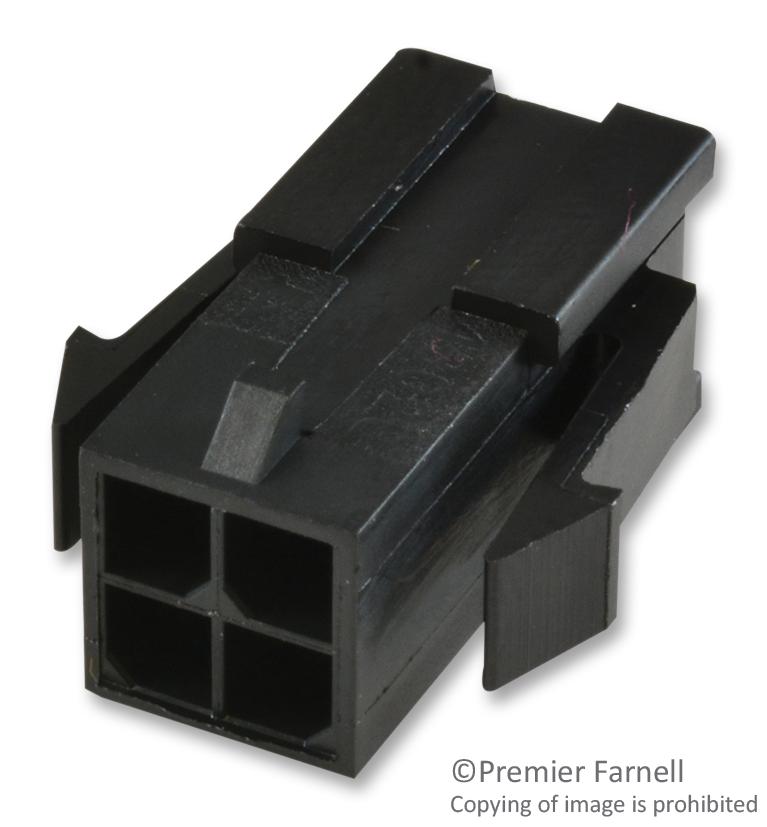

Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 0430200400
Secondary Manufacturer Part#: 0430200400
-
RoHS 10 Compliant -
Tariff Charges
43020-0400 is a dual row, Micro-Fit 3.0™ plug housing with panel mount ears. It mates with 43025 Micro-Fit 3.0™ receptacle housings.
- Use with 43031 Micro-Fit 3.0™ male crimp terminals
- Operating temperature range from -40°C to +105°C
- Polarized
- 5A rated
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| PBT (Polybutylene Terephthalate) | ||
| Straight | ||
| Plug | ||
| Black | ||
| 8.5 A | ||
| Panel Mount | ||
| 4 | ||
| 2 | ||
| -40 to 105 °C | ||
| 3.0000 mm | ||
| 16.89 mm | ||
| 16.89 x 9.65 mm | ||
| 9.65 mm | ||
| 43020 | ||
| Power Housing | ||
| 600 Vdc|Vac | ||
| 30 to 18 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8536.69.40.30 |
| Schedule B: | 8536.69.40.30 |
Factory Lead Time:
