0015311036
Pin Header, Power, 6.7 mm, 1 Rows, 3 Contacts, Through Hole Straight, Standard .093" 5219 Series"

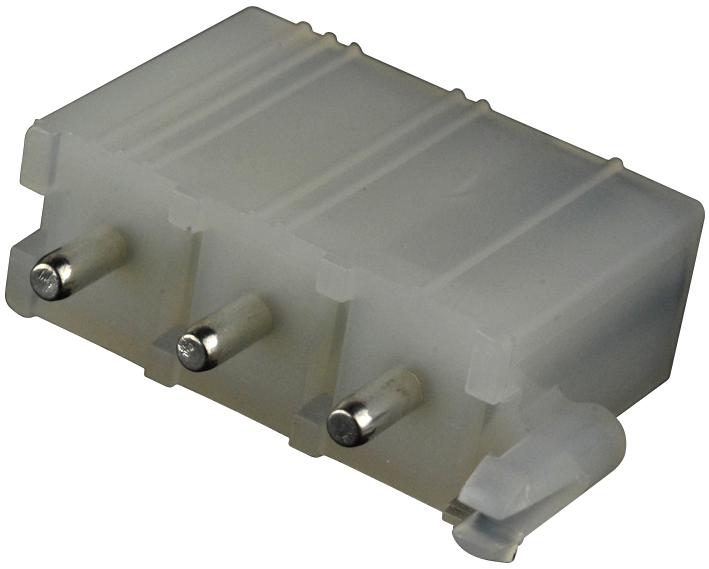

The 15-31-1036 is a 3-position 1-row fully shrouded vertical PCB header with tin-plated phosphor brass contacts and a natural colour nylon insulator. It mates with 3191 pin and socket receptacle housing. It is used for wire-to-board applications.
- Flexible design
- Maximum current per contact is 11A
- Maximum voltage is 600V
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Nylon 66 | ||
| Straight | ||
| Brass | ||
| Tin | ||
| Header | ||
| Natural | ||
| Tin | ||
| Through Hole | ||
| 3 | ||
| 1 | ||
| 3 | ||
| -40 to 105 °C | ||
| 6.7000 mm | ||
| 9.8 mm | ||
| 24.9 x 9.8 x 15 mm mm | ||
| 15 mm | ||
| 24.9 mm | ||
| 5219 | ||
| Solder | ||
| Power |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8536.69.40.30 |
| Schedule B: | 8536.69.40.30 |
Factory Lead Time:
