0009652058

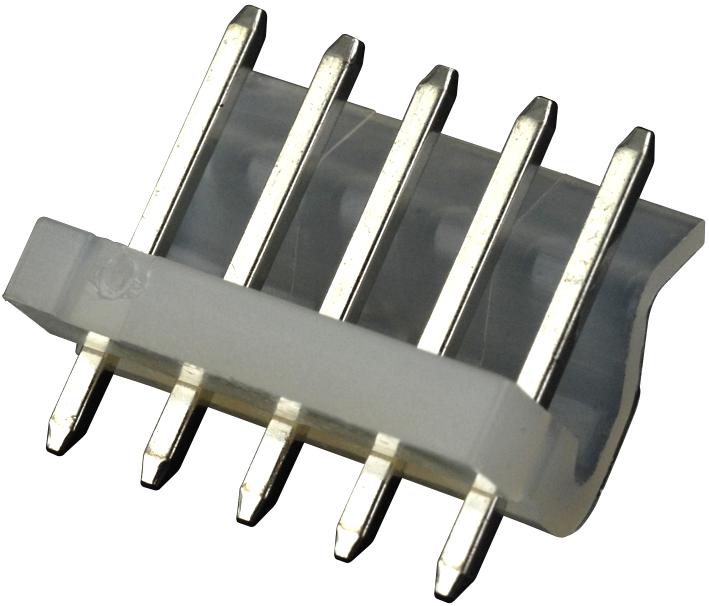

Pin Header, Wire-to-Board, 3.96 mm, 1 Rows, 5 Contacts, Through Hole Straight, KK 396 5273 Series
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, PC Board Connectors, Wire to Board Connectors
Avnet Manufacturer Part #: 0009652058
Secondary Manufacturer Part#: 0009652058
-
RoHS 10 Compliant -
Tariff Charges
KK 396 Connector System is ideal for board to board and wire to board applications. They deliver up to 7A and 600V per circuit in an industry-standard 3.96mm pitch.
- Three point contact, dual cantilever terminal
- Polarizing header backwalls, polarizing ribs on receptacles
- PCB retention pegs on headers
- Friction-lock headers and receptacles
- KK RPC headers offered in high-temperature nylon and reflow matte-tin plating
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Nylon 66 | ||
| Straight | ||
| Brass | ||
| Tin Over Copper | ||
| Header | ||
| Natural | ||
| Tin Over Copper | ||
| 10 mOhm | ||
| 7 A | ||
| Through Hole | ||
| 5 | ||
| 1 | ||
| -40 to 105 to 105 °C | ||
| 3.96 mm | ||
| 10.75 mm | ||
| 19.04 x 10.75 x 13.85 mm | ||
| 13.85 mm | ||
| 19.04 mm | ||
| 5273 | ||
| Solder | ||
| Partial Shrouded |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
