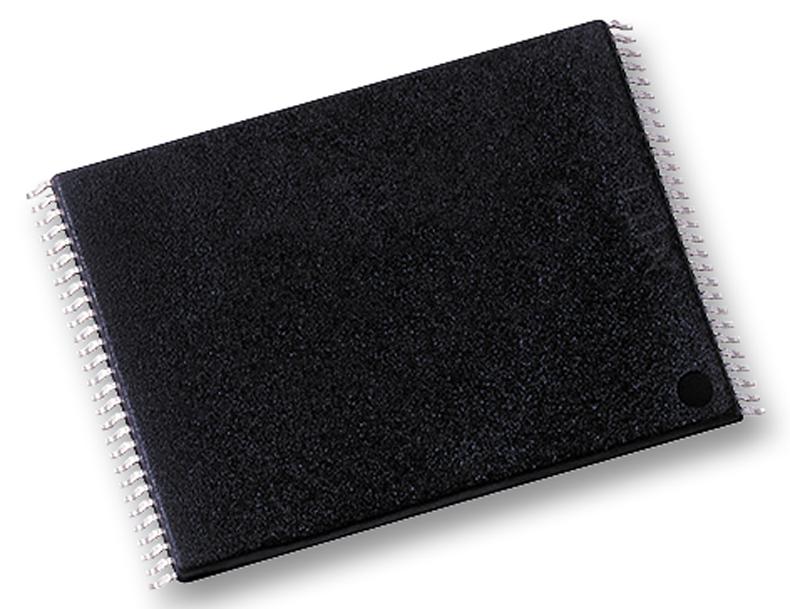

MT29F1G08ABAFAWP-AAT:F

MT29F1G08ABAFAWP-AAT:F serial peripheral interface (SPI) NAND is an SLC NAND flash memory device that provides a cost-effective non-volatile memory storage solution where pin count must be kept to a minimum. It is also an alternative solution to SPI NOR, offering superior write performance and cost per bit over SPI NOR. The hardware interface creates a low pin count device with a standard pinout that remains the same from one density to another and supports future upgrades to higher densities without board redesign. New features include user-selectable internal ECC and first page auto-load on powerup. It has six signal lines plus VCC and ground (GND). The signal lines are SCK (serial clock), SI, SO (for command/response and data input/output), and control signals CS, HOLD#, WP#. This hardware interface creates a low pin-count device with a standard pinout that remains the same from one density to another, supporting future upgrades to higher densities without board redesign.

• Single-level cell (SLC) technology, 1Gb density
• Standard and extended SPI-compatible serial bus interface
• User-selectable internal ECC supported, 8bits/sector
• Advanced features are read page cache mode, read unique ID, read parameter page
• Device Initialization, automatic device initialization after power-up
• Blocks 7:0 are valid when shipped from factory with ECC enabled
• Lock tight to freeze BP bits during one power cycle instead of WP#
• OTP space: ten pages one-time programmable NAND flash memory area
• AEC-Q100 compliant
• 48-pin TSOP type 1 package, operating temperature range from -40°C to +105°C
