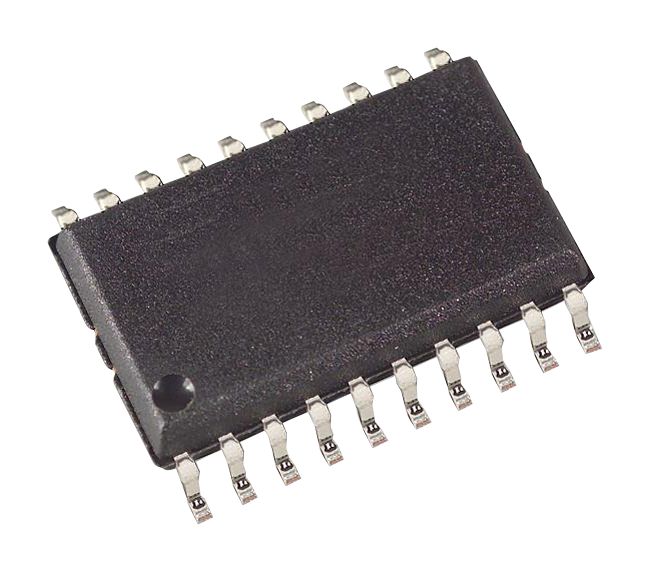

SP3223EEA-L

The SP3223EEA-L is an Intelligent RS-232 Transceiver intended for portable applications. It has an internal high-efficiency, charge-pump power supply that requires only 0.1µF capacitors in 3.3V operation. This charge pump and Exar's driver architecture allow the SP3223 series to deliver compliant RS-232 performance from a single power supply ranging from 3.3 to 5V. The AUTO ON-LINE® feature allows the device to automatically wake-up during a shutdown state when an RS-232 cable is connected and a connected peripheral is turned on. Otherwise, the device automatically shuts itself down drawing less than 1µA. In many portable or handheld applications, an RS-232 cable can be disconnected or a connected peripheral can be turned off. Under these conditions, the internal charge pump and the drivers will be shut down. Otherwise, the system automatically comes online. This feature allows design engineers to address power saving concerns without major design changes.

• Minimum 250kbps data rate under load
• 1Mbps Data rate for high speed RS-232
• Regulated charge pump yields stable RS-232 outputs regardless of VCC variations
