FFV36L0905K--
Power Film Capacitor, 9 uF, 1.1 kV, ± 10%, PP, Radial Box - 2 Pin, Through Hole

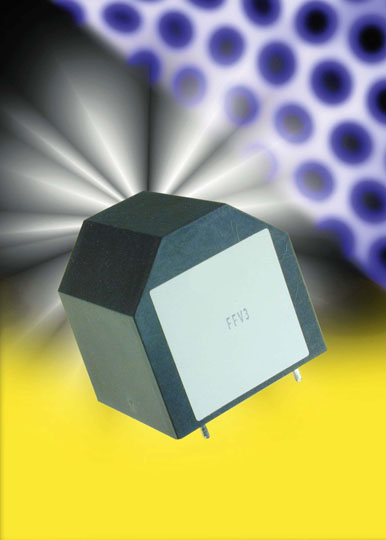

Click image to enlarge
Manufacturer:Kyocera AVX
Avnet Manufacturer Part #: FFV36L0905K--
Secondary Manufacturer Part#: FFV36L0905K--
-
RoHS 10 Compliant -
Tariff Charges
The series uses a non-impregnated metallized polypropylene or polyester dielectric, which features a controlled self healing process, specially treated to have a very high dielectric strength in operating conditions up to 105°C. The FFV special design gives this series a very low level of stray inductance (18 no to 40 no). Furthermore, the performance levels of the FFVE capacitor makes them a very interesting alternative to electrolytic technology, because they can withstand much higher levels of surge voltage, very high rms current ratings, and longer lifetimes.
- Voltage Range: 300V to 1900V
- Capacitance Range: 12uF to 400uF
- Female and male threaded
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 9 uF | ||
| 10% | ||
| Through Hole | ||
| -888 | ||
| 7.61 mOhm | ||
| 25 mm | ||
| 105 °C | ||
| -40 °C | ||
| -888 | ||
| -888 | ||
| -888 | ||
| 40 mm | ||
| 40 mm | ||
| 36 mm | ||
| -888 | ||
| -888 | ||
| 20 A | ||
| -888 V | ||
| 1.1 kV |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8532100000 |
| Schedule B: | 8532100000 |
Factory Lead Time:
