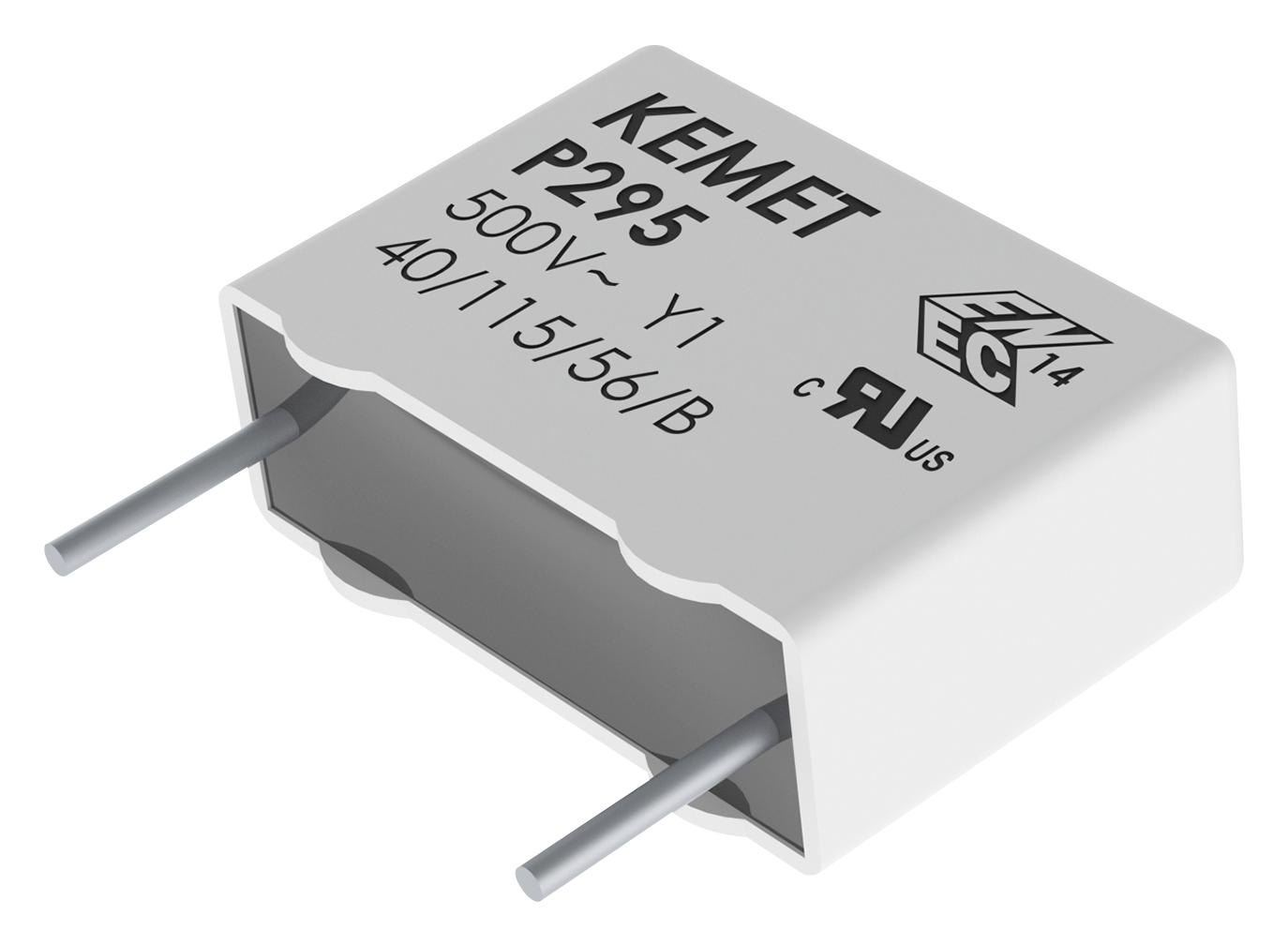

P295BJ222M500A

The P295 Series is constructed of multilayer metallized paper encapsulated and impregnated in self-extinguishing material meeting the requirements of UL 94 V–0.Typical applications include safety capacitors for bridging of double or reinforced insulation applications requiring voltage test up to 4,000 VAC at 60 seconds. P295 Series capacitors can be left in place during this test.

• Approvals: ENEC, UL, cUL, CQC / Rated voltage: 500 VAC 50/60 Hz
• Capacitance range: 470 – 4,700 pF / Capacitance tolerance: ±20% / Lead spacing: 15.0 mm
• Climatic category: 40/115/56/B, IEC 60068–1 / Operating temperature range of -40°C to +115°C
• RoHS Compliant and lead-free terminations
• 100% screening factory test at 4,000 VAC, 50 Hz, 2 seconds / High dV/dt capability
• Highest possible safety regarding active and passive flammability
• Excellent self-healing properties ensure long life even when subjected to frequent over voltages
• Good resistance to ionization due to impregnated dielectric
• Impregnated paper provides excellent stability and reliability properties, particularly in applications with continuous operation
