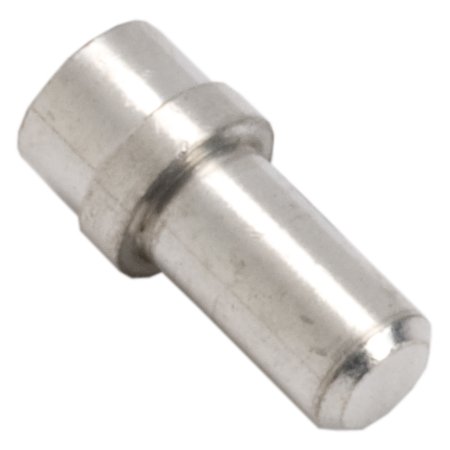

H3182-01
IC & Component Socket, 1 Contacts, PCB Socket, Beryllium Copper
H3182-01 is a Ø1.00mm vertical, female through-board contact designed for reliable PCB integration. It features a robust 4-finger beryllium-copper contact clip that ensures excellent conductivity and stable retention. The contact is vibration-rated from 10 to 2,000Hz at 10G for 6 hours, making it suitable for demanding, high-vibration environments where long-term electrical reliability is essential.
- Current rating of 10A max at 25°C, 7.5A max at 85°C
- PC board socket for mating Ø1.00mm pin - gold finish on contact area, tin finish on termination
- Operating temperature range from -55°C to +125°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Vertical | ||
| Beryllium Copper|Brass | ||
| Gold | ||
| Female/Socket/Jack | ||
| Pure Tin over Nickel | ||
| MSL 1 - Unlimited | ||
| 1 POS | ||
| -55 to 125 °C | ||
| 5.95 x 2.67 x 2.67 mm | ||
| 5.65 | ||
| Sockets |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
