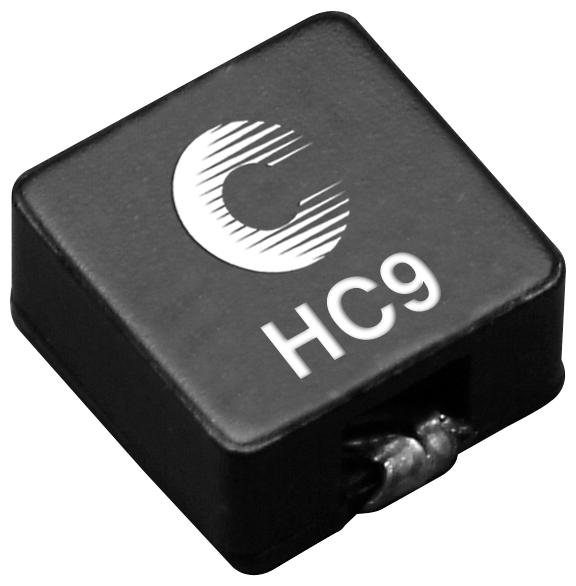

HC9-100-R
Power Inductor (SMD), 10 µH, 8.5 A, Shielded, 12.5 A, HC9 Series
The HC9 series surface-mount high-current 9 Power Inductor designed for higher speed switch mode applications requiring lower inductance, low voltage and high-current. The design utilizes high temperature powder iron material with a non-organic binder to eliminate thermal aging. It is suitable for high-current DC-DC converters, VRM and multi-phase buck regulators.
- Frequency Range 1 to 500kHz
- -40 to 155°C Operating temperature range
- 260°C Maximum for 10 seconds solder-reflow temperature
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 14 mOhm | ||
| 10 uH | ||
| 15 | ||
| Unshielded | ||
| 7.5 mm | ||
| 13.8 mm | ||
| HC9 Series | ||
| 13.1 mm | ||
| 8.5 A | ||
| 12.5 A |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
