ZXTP2012ZTA
Bipolar (BJT) Single Transistor, PNP, 80 V, 4.3 A, 1.5 W, SOT-89, Surface Mount

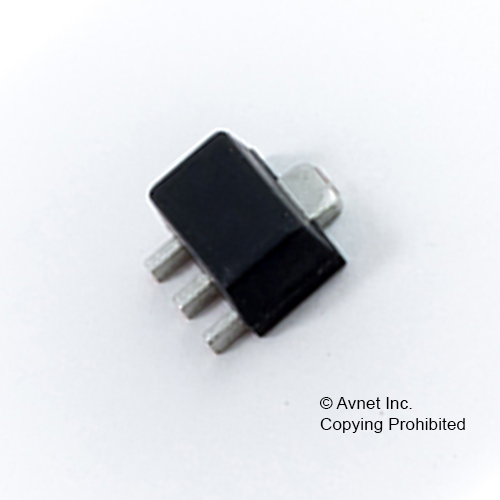

Click image to enlarge
Manufacturer:Diodes Incorporated
Product Category:
Discretes, Bipolar Transistors, Single Bipolar Transistors
Avnet Manufacturer Part #: ZXTP2012ZTA
Secondary Manufacturer Part#: ZXTP2012ZTA
-
RoHS 10 Compliant -
Tariff Charges
The ZXTP2012ZTA is a PNP low saturation medium power Bipolar Transistor offers -4.3A high continuous current and hFE specified up to -10A for high current gain hold up. It is suitable for emergency lighting circuits, motor driving (including DC fans), backlight inverters, power switches, gate driving MOSFETs and IGBTs.
- -65mV Maximum low saturation voltage VCE(SAT) @ -1A
- 32mΩ RSAT for a low equivalent ON-resistance
- ZXTN2010Z Complementary NPN type
- Halogen-free, Green device
- -55 to 150°C Operating temperature range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 60 | ||
| 100 | ||
| 4 | ||
| 150 °C | ||
| 2.1 | ||
| SOT-89 | ||
| Surface Mount | ||
| PNP | ||
| 120 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
