SBR12U120P5-13

Name: SBR12U120P5-13
Brand: Diodes Incorporated
SKU: SBR12U120P5-13
Availability: InStock

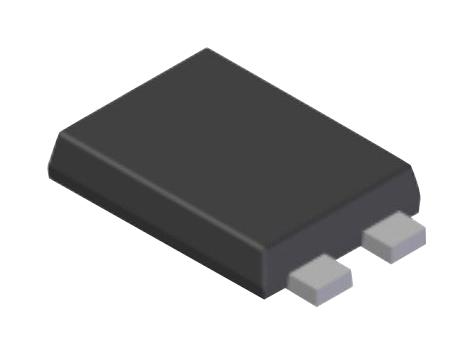

Click image to enlarge

Manufacturer:Diodes Incorporated

Product Category: Discretes, Diodes & Rectifiers, Standard Recovery Rectifiers

Avnet Manufacturer Part #: SBR12U120P5-13

Secondary Manufacturer Part#: SBR12U120P5-13

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Average Forward Current	12
	Diode Case Style	PowerDI5
	Diode Configuration	Single Dual Anode
	Diode Mounting	Surface Mount
	Forward Surge Current	250
	Forward Voltage Max	800
	No. of Pins	3
	Operating Temperature Max	150 °C
	Repetitive Peak Reverse Voltage	120

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	null
ECCN:	EAR99
HTSN:	8541100080
Schedule B:	8541100050

In Stock : 0

Additional inventory

Factory Lead Time: 84 Weeks

Price for: Each

Quantity:

Min:5000 Mult:5000

USD $:

5000+

$0.32895

10000+

$0.32468

15000+

$0.32051

25000+

$0.31646

50000+

$0.30864

125000+

$0.30120

250000+

$0.29412
