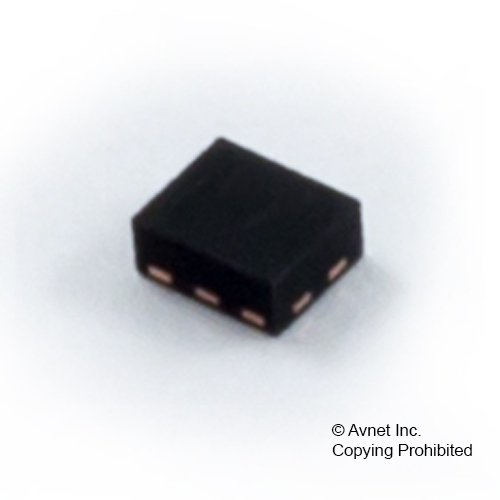

DMC1229UFDB-7

Name: DMC1229UFDB-7
Brand: Diodes Incorporated
SKU: DMC1229UFDB-7
Availability: InStock

Click image to enlarge

Manufacturer:Diodes Incorporated

Product Category: Discretes, FETs, MOSFET Arrays

Avnet Manufacturer Part #: DMC1229UFDB-7

Secondary Manufacturer Part#: DMC1229UFDB-7

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Channel Type	Complementary
	Continuous Drain Current Id N Channel	5.6
	Continuous Drain Current Id P Channel	3.8
	Drain Source On State Resistance N Channel	29
	Drain Source On State Resistance P Channel	61
	Drain Source Voltage Vds N Channel	12
	Drain Source Voltage Vds P Channel	12
	No. of Pins	6
	Operating Temperature Max	150 °C
	Power Dissipation N Channel	1.4
	Transistor Case Style	U-DFN2020

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	null
ECCN:	EAR99
HTSN:	PARTS...
Schedule B:	PARTS...

In Stock : 0

Additional inventory

Factory Lead Time: 84 Weeks

Price for: Each

Quantity:

Min:3000 Mult:3000

USD $:

$0.00000
