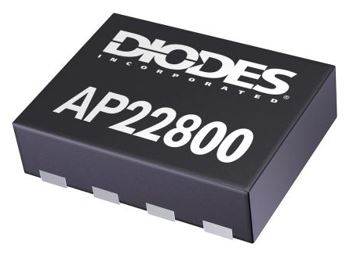

AP22800HB-7

Name: AP22800HB-7
Brand: Diodes Incorporated
SKU: AP22800HB-7
Availability: InStock

Power Switch 6A 8-Pin U-DFN2116 T/R

Click image to enlarge

Manufacturer:Diodes Incorporated

Product Category: Power Management, Power Load Distribution Switches

Avnet Manufacturer Part #: AP22800HB-7

Secondary Manufacturer Part#: AP22800HB-7

RoHS 10 Compliant
Tariff Charges

Description

The AP22800 is an integrated N-channel load switch which features an adjustable ramp-up and discharge rate that are settable via an external capacitor and a resistor, respectively.

1.5V to 5.5V Input Range
Low Typical RDS(ON) of 16mO
Very Low Quiescent Current of 21µA
Adjustable Start-Up and Discharge Rate
Small Form Factor Package U-DFN2116-8
- Footprint of just 3.36mm2
Thermally Efficient Low Profile
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device

Technical Attributes

Find Similar Parts

	Description	Value
	Current Limit	6 A
	IC Case / Package	UDFN-EP
	Input Voltage	5.5 V
	Max Processing Temp	260
	Minimum Output Current	6 A
	Mounting	Surface Mount
	No. of Channels	1
	No. of Outputs	1
	No. of Pins	8
	Number of Outputs	1
	On / Enable Input Polarity	Active High
	On State Resistance	22 mOhm
	Operating Supply Voltage Range	1.5 to 5.5 V
	Operating Temperature	-40 to 85 °C
	Operating Temperature Max	85 °C
	Operating Temperature Min	-40 °C
	Package	8U-DFN2116
	Pin Count	8
	Power Load Switch Type	High Side
	Product Dimensions	2.1 x 1.6 x 0.555
	Supplier Package	uDFN2116
	Supply Current	0.021 mA
	Switch On Resistance	0.016 Ohm
	Thermal Protection	Yes
