AL5802-7

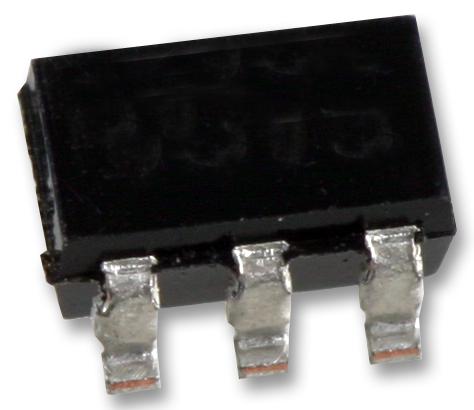

LED DRVR 5V/9V/12V/15V/18V/24V 6-Pin SOT-26 T/R
Click image to enlarge
Manufacturer:Diodes Incorporated
Product Category:
電源管理, 驅動器和控制器, 線性 LED 驅動器
Avnet Manufacturer Part #: AL5802-7
Secondary Manufacturer Part#: AL5802-7
-
RoHS 10 Compliant -
Tariff Charges
AL5802-7 is a linear mode current sink LED driver. It combines a high-gain NPN transistor with a pre-biased NPN transistor to make a simple small-footprint LED driver. The LED current is set by an external resistor connected from REXT pin (6) to GND pin (
- Reference voltage VRSET = 0.65V
- 0.8V to 30V open-collector output
- Negative temperature co-efficient automatically reduces the LED current at high temperatures
- Supply voltage range from 4.5V to 30V
- Collector-emitter
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 30 V | ||
| 4.5 V | ||
| Matte Tin | ||
| 260 | ||
| Surface Mount | ||
| MSL 1 - Unlimited | ||
| 2 | ||
| Adjustable Current | ||
| 6SOT-26 | ||
| 6 | ||
| 3 x 1.6 x 1.1 mm | ||
| SOT-26 | ||
| Linear | ||
| Linear |
