RJHSE-3381
Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat5, Through Hole Mount

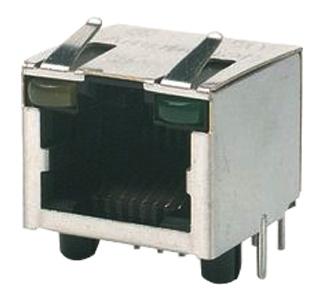

Click image to enlarge
Manufacturer:Amphenol
Product Category:
Connectors, RJ - Registered Jack Connectors
Avnet Manufacturer Part #: RJHSE-3381
Secondary Manufacturer Part#: RJHSE-3381
-
RoHS 10 Compliant -
Tariff Charges
The RJHSE-3381 is a 8-position single-port RJ45 high speed Modular Jack, RJHSE series, gold-plated phosphor bronze contacts and UL94V-0 flammability-rated black high temperature thermoplastic housing, vertical mount, yellow left and green right LED. The RJHSE inverted modular jack with superior EMI performance supports Ethernet protocols. Shielding available for increased EMI performance and LEDs for link activity and network speed verification.
- Stainless steel with tin dipped tails shield
- Tin plating on LED tails
- 20mO Maximum contact resistance
- 500MO Minimum at 500VDC for 2 minutes maximum insulation resistance
- 1.5A Current rating
- 125VAC Voltage rating
- 20mA Typical LED forward DC current
- 5V Minimum LED reverse voltage
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Thermoplastic|Stainless Steel | ||
| Straight | ||
| Phosphor Bronze | ||
| Gold Over Nickel | ||
| Receptacle | ||
| Matte Tin Over Nickel | ||
| Through Hole | ||
| 8 | ||
| 1 | ||
| 12 | ||
| -55 to 85 °C | ||
| 1.02 mm | ||
| 13.59 mm | ||
| 18.29 x 13.59 x 16.38 mm | ||
| 16.38 mm | ||
| 18.29 mm | ||
| RJHSE | ||
| Solder | ||
| Modular Jack |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
