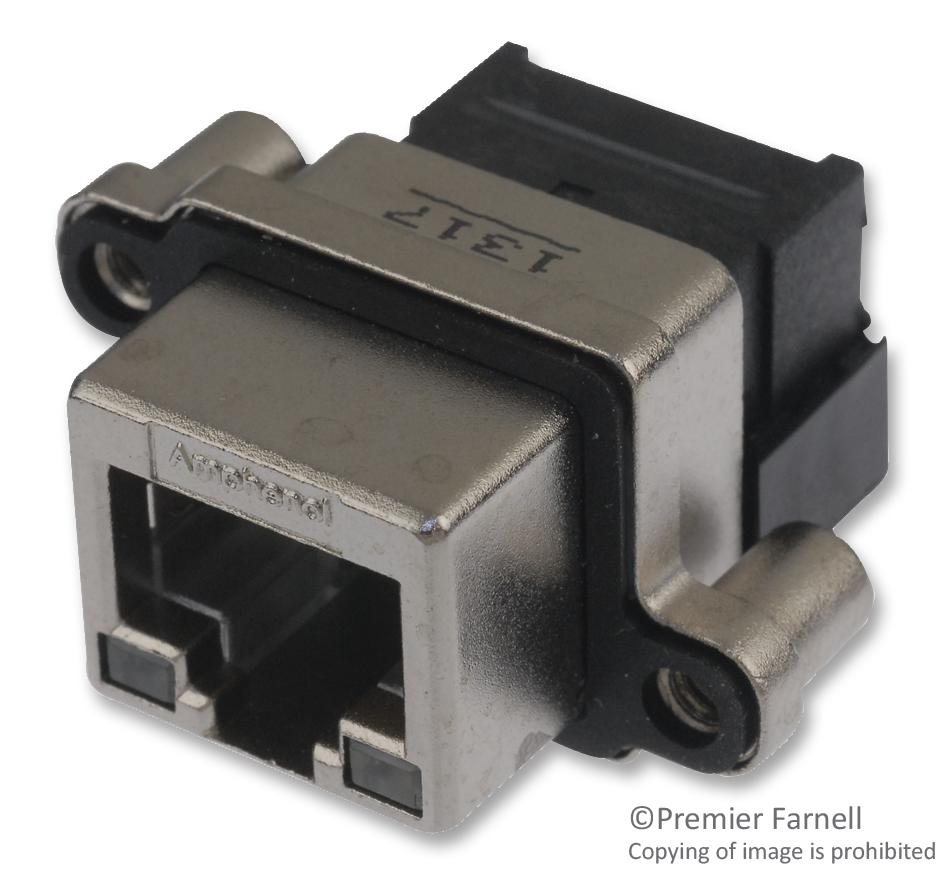

MRJ-5381-01

The MRJ series Rugged RJ45 Connector has phosphor bronze with gold over nickel contacts. It is designed to provide a standard RJ45 interface, ideal for harsh environments where Ethernet/IP protocol is used. It has data rates conform to 10BaseT or 100BaseT Ethernet. It has right angle PCB tail termination with 8 or 10 positions, LED options, EMI ferrite filtering and PCB options (with matching RJ connector, cable header and terminal block or for hand wiring). It also has vertical PCB tail termination with 8 positions and LED options. The device both termination styles have dust covers for enhanced mating area protection.

• Protection is provided for IP67 applications per IEC 60529 specification
• 1.5A Current rating per pin
• 30mΩ Contact resistance (maximum)
• 2500 Mating cycles
