65474-001LF
Jumper (Busbar), Jumper, 2.54mm Headers, 2 Ways, 2.54 mm
Click image to enlarge
Manufacturer:Amphenol
Product Category:
Connectors, Jumpers & Shunts
Avnet Manufacturer Part #: 65474-001LF
Secondary Manufacturer Part#: 65474-001LF
-
RoHS 10 Compliant -
Tariff Charges

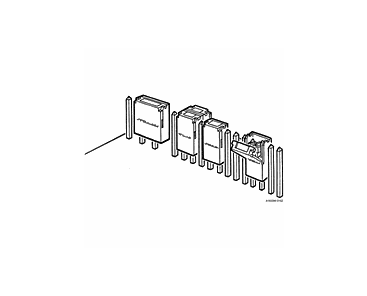

The 65474-001LF is a Mini-Jump™ 2-position Low-profile Jumper with gold-plated copper alloy contacts, thermoplastic polyester (UL94V-0) housing, single row shunt, 2.54mm spacing (centre line).
- Blue colour
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Polyester | ||
| Brass Alloy|Beryllium Copper | ||
| Gold Over Nickel | ||
| Blue | ||
| Gold Over Nickel | ||
| 2 POS | ||
| 1 | ||
| -55 to 120 to 120 °C | ||
| 2.54 mm | ||
| 2.54 mm | ||
| 5.21 x 2.54 x 9.78 mm | ||
| 9.78 mm | ||
| 5.21 mm | ||
| 65474 | ||
| Mini Jumper |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
