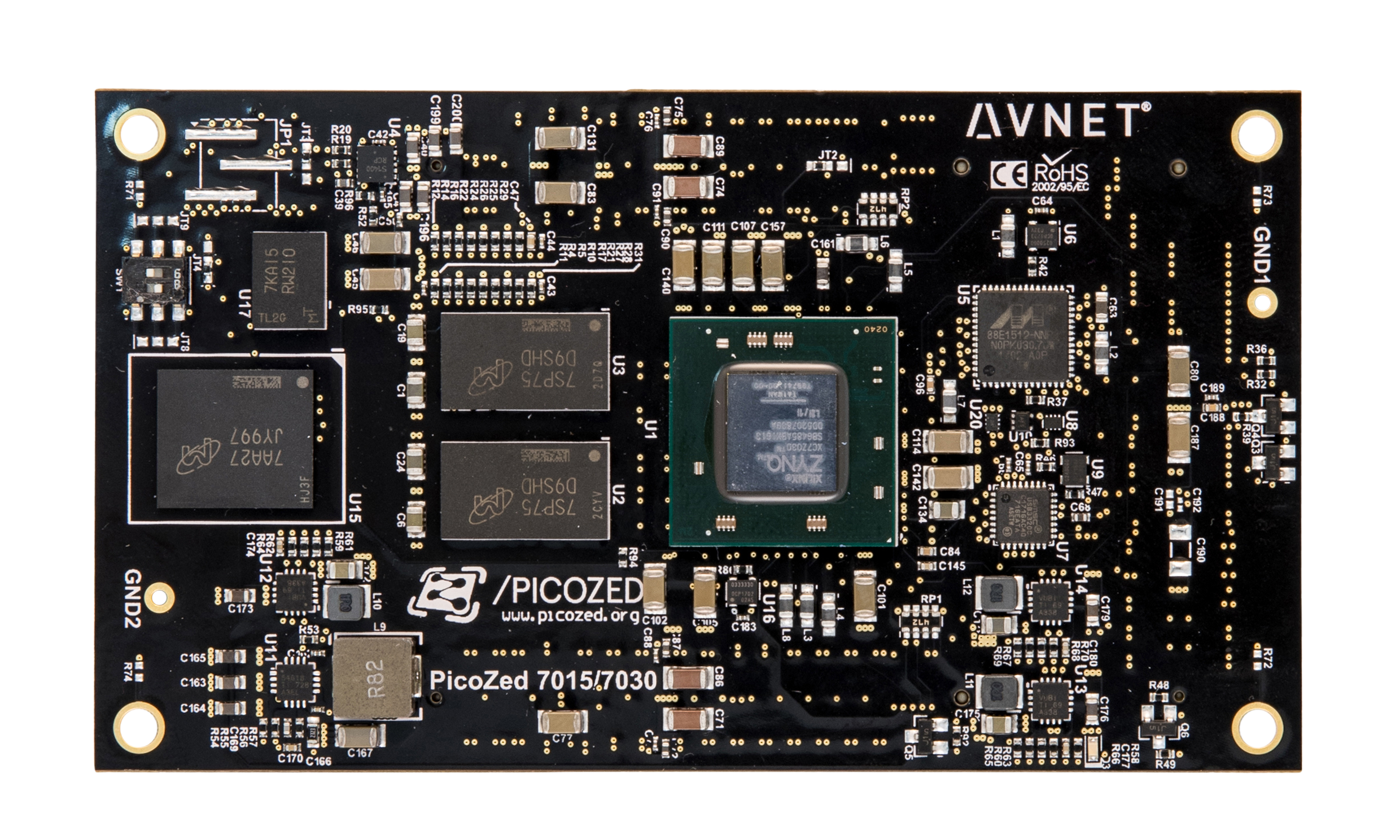

AES-Z7PZ-7Z030-SOM-I-G/REV-E
- 148 user I/O (135 PL, 13 PS MIO)
- PL I/O configurable as up to 65 LVDS pairs or 135 single-ended I/O
- 4 GTX transceivers
- 1SBG485 SoC options
- 1GB of DDR3 SDRAM, 128Mb of QSPI flash, 4GB eMMC memory
- 10/100/1000 Ethernet PHY, USB 2.0 PHY communications
- JTAG configuration port accessible via I/O connectors
- PS JTAG pins accessible via I/O connectors
- 33.33MHz oscillator
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 128 Mbit | ||
| 4 GB | ||
| ARM | ||
| Board to Board | ||
| One 10/100/1000 | ||
| 1 | ||
| 1 | ||
| 1 | ||
| 1 GB | ||
| QSPI Flash | ||
| Linux BSP | ||
| ARM Cortex-A9 | ||
| Xilinx | ||
| eMMC | ||
| USB2.0|1 USB2.0 OTG | ||
| LVDS | ||
| LVDS |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | 4A994 |
| HTSN: | 8471500150 |
| Schedule B: | 8471500150 |
