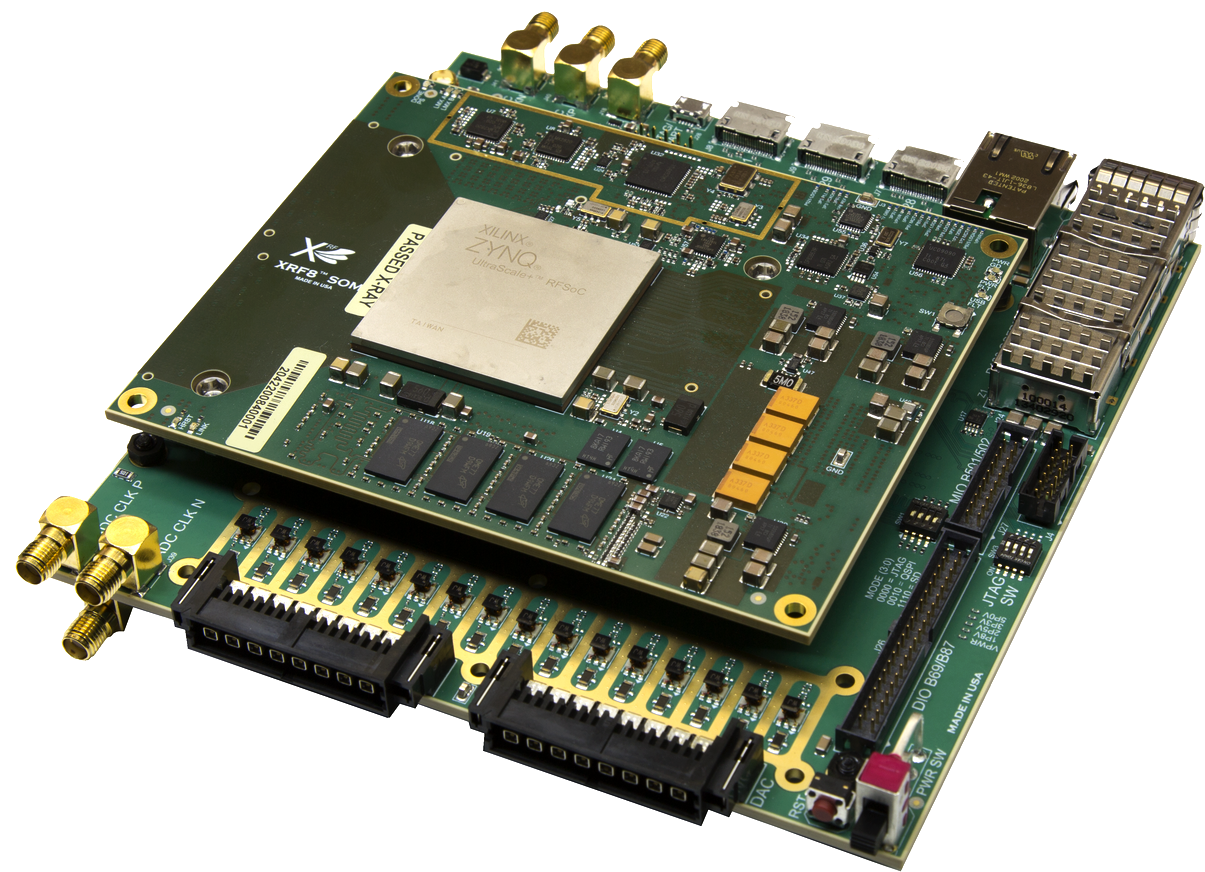

AES-XRF8-CC-G
- RF interface & synchronization
- 2x Samtec IsoRate® high density quick connect
- Trigger In, Trigger Out, External Clock Reference (SMA)
- High-speed data transfer
- 16x ultra-fast AMD Xilinx GTY serial transceivers, connected as:
- 1x QSFP28 (100GbE not supported)
- 3x OCuLink
- Peripheral
- 1 GbE connector
- Micro USB 2.0 for device connection
- Micro USB for JTAG & UART
- Micro USB for UART
- JTAG debug header
- 32 PL-GPIO at standard header pins
- 16 PS-GPIO at standard header pins
- System
- Supply 12V power at 2.5mm center positive jack
- 6.0” x 6.0” footprint
- Kit includes
- XRF8 carrier card
- Avalon™ software
- Target apps
- Phased Array Radar
- 5G Massive MIMO
- Hybrid Beamforming
- Signal Detection & Jamming
- Medical Imaging
- Multi-Cha
Technical Attributes
Find Similar Parts
| Description | Value |
|---|
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | null |
| Schedule B: | null |
Factory Lead Time:
