AS6C62256-55SIN
SRAM Chip Async Single 3.3V 256K-Bit 32K x 8 55ns 28-Pin SOP

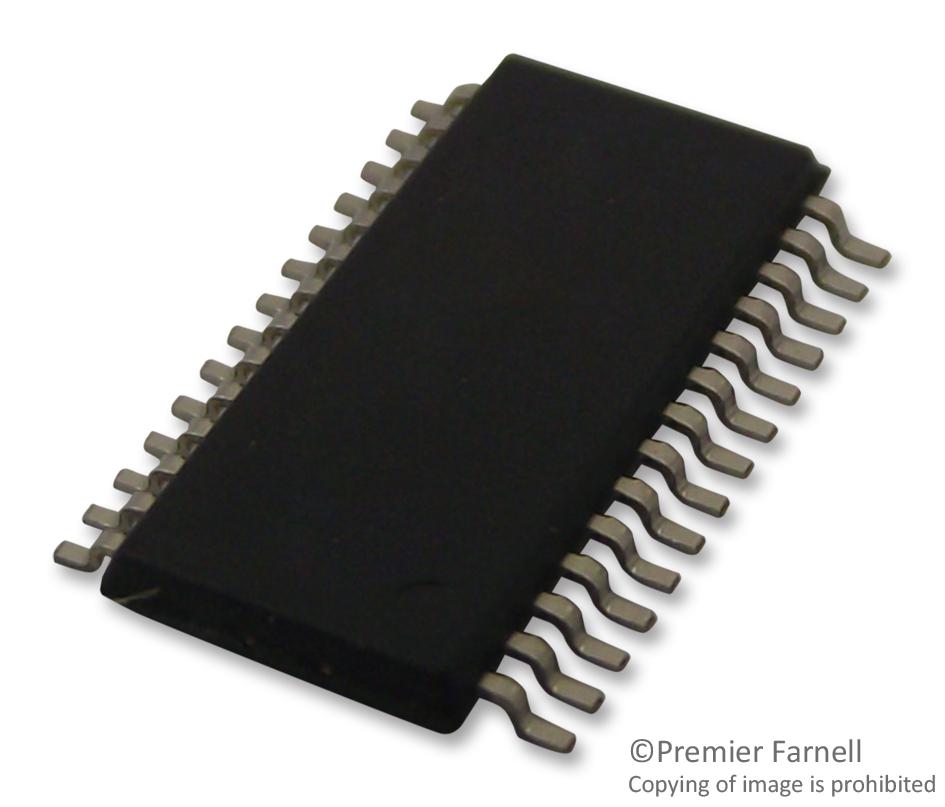

Click image to enlarge
Manufacturer:Alliance Memory
Avnet Manufacturer Part #: AS6C62256-55SIN
Secondary Manufacturer Part#: AS6C62256-55SIN
-
RoHS 10 Compliant -
Tariff Charges
The AS6C62256 is a 262,144-bit low power CMOS static random access memory organized as 32,768 words by 8 bits. It is fabricated using very high performance, high reliability CMOS technology. Its standby current is stable within the range of operating temperature.The AS6C62256 is well designed for low power application, and particularly well suited for battery back-up nonvolatile memory application. The AS6C62256 operates with wide range power supply 2.7 ~ 5.5V.
- Access time : 55ns
- Low power consumption:
- Operation current :
- 15mA (TYP.), VCC = 3.0V
- Standby current : 1µA (TYP.), VCC = 3.0V
- Fully Compatible with all Competitors 5V product
- Fully static operation
- Tri-state output
- Data retention voltage :1.5V (MIN.)
- All products ROHS Compliant
- Package :
- 28-pin 600 mil PDIP
- 28-pin 330 mil SOP
- 28-pin 8mm x 13.4mm sTSOP
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 15 Bit | ||
| 256 Kb | ||
| SOP | ||
| Surface Mount | ||
| 45 mA | ||
| 55 ns | ||
| 32K x 8bit | ||
| 256 Kb | ||
| Surface Mount | ||
| 28 | ||
| 8 Bit | ||
| 8 Bit | ||
| 1 | ||
| 32 kWords | ||
| -40 to 85 °C | ||
| 85 °C | ||
| -40 °C | ||
| 28SOP | ||
| 28 | ||
| 18.49 x 8.64 x 2.49 mm | ||
| No | ||
| Industrial | ||
| Asynchronous SRAM | ||
| SOP | ||
| 5.5 V | ||
| 2.7 V | ||
| 3.3 V | ||
| Asynchronous | ||
| 3.3000 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8542320041 |
| Schedule B: | 8542320040 |
