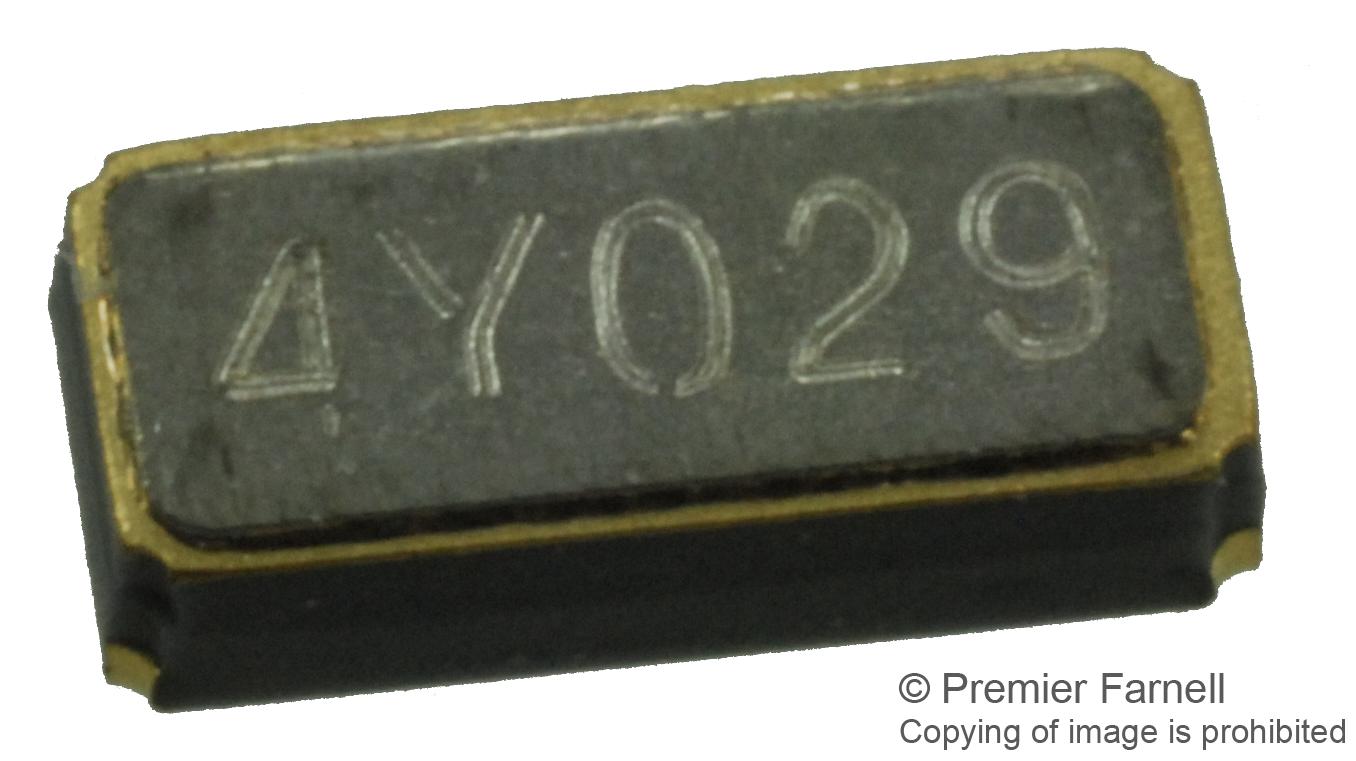

ABS07-32.768KHZ-9-T
Crystal, Low Profile, 32.768 kHz, SMD, 3.2mm x 1.5mm, 9 pF, 20 ppm, ABS07 Series
Click image to enlarge
Manufacturer:Abracon
Product Category:
Clock & Timing, Crystals
Avnet Manufacturer Part #: ABS07-32.768KHZ-9-T
Secondary Manufacturer Part#: ABS07-32.768KHZ-9-T
-
RoHS 10 Compliant -
Tariff Charges
ABS07-32.768KHz-9-T is an ABS07 series 32.768KHz SMD low profile crystal. Typical applications include wide range in communication & measuring equipment, commercial & Industrial applications, wireless communications and PDA and Smartphone.
- Guaranteed ESR of 60Kohm maximum for low power designs
- 0.9mm height ideal for high density circuit boards
- Seam sealed ceramic package offers excellent environmental & heat resistance
- Extended operating temperature of -40°C to +85°C for industrial applications
- Low frequency in small size SMD
- 9pF load capacitance
- ±20ppm frequency tolerance
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| CSMD | ||
| 3.2mm x 1.5mm x 0.9mm | ||
| 32.768 kHz | ||
| Surface Mount | ||
| Tuning Fork | ||
| 70 kOhm | ||
| 20 ppm | ||
| 9 pF | ||
| 2 | ||
| 85 °C | ||
| -40 °C | ||
| ABS07 Series |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
