Belfuse - Circuit protection fuse

The Bel Fuse circuit protection portfolio includes one of the broadest ranges of circuit protection products on the market today. Bel Fuse has been at the forefront of the industry shift to board level, surface mount,PCB mount, fuse design.

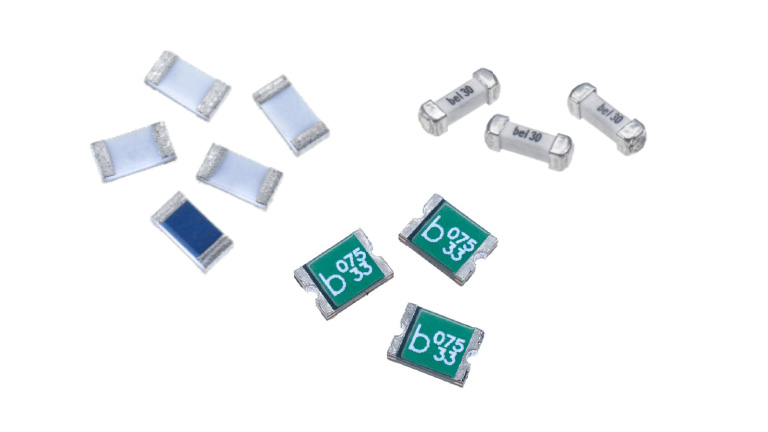

Bel expanding portfolio includes a range of complementary products from chip SMT fuse, brick SMT fuse, radial lead fuse and resettable PTC fuse.

Features

Brick SMT fuses:

• Voltage ratings – up to 600 VAC / 125 VDC
• Amp ratings – up to 30A
• Case sizes from 2410 to 4818

Chip SMT fuse:

• Voltage ratings – up to 125 VAC / 63 VDC
• Amp ratings – up to 8A
• Case sizes 0603 and 1206

SMT PTC resettable devices:

• Voltage rating range – 6 ~ 60 VDC
• IHold amp range – 50mA to 3A
• Case sizes 0603 through 2920

PTC radial leaded resettable devices:

• Voltage rating – 16 – 240 VAC/VDC
• IHold amp range – 50mA to 14A

Target applications

Including battery chargers, power supplies, modems, routers, consumer electronics, PoE, PoE+, Backplane Short Circuit Protection, telecom and automotive, lighting products etc.
