Uninterruptible Power Systems (UPS)

Main Title

Unlock unmatched efficiency with Infineon’s UPS solutions

Long Copy - description

Power continuity is vital in today’s mission-critical environments, and Infineon is driving the evolution of Uninterruptible Power Supply (UPS) systems with cutting-edge technologies. As demand for higher efficiency, reliability, and scalability grows, our broad portfolio provides the foundation for next-generation UPS designs. These solutions enable greater energy density, improved thermal performance, and intelligent system control—ensuring uninterrupted power even under the most demanding conditions. Supported by system-level design resources and detailed block diagrams, Infineon empowers engineers to create UPS systems that are not only smarter and more compact, but also more robust and dependable.

Static HTML

1. Offline/standby

Unlock unmatched efficiency with Infineon’s UPS solutions

2. Line-interactive

Unlock unmatched efficiency with Infineon’s UPS solutions

3. On-line/double-conversion

Unlock unmatched efficiency with Infineon’s UPS solutions

Product highlights

Tabs

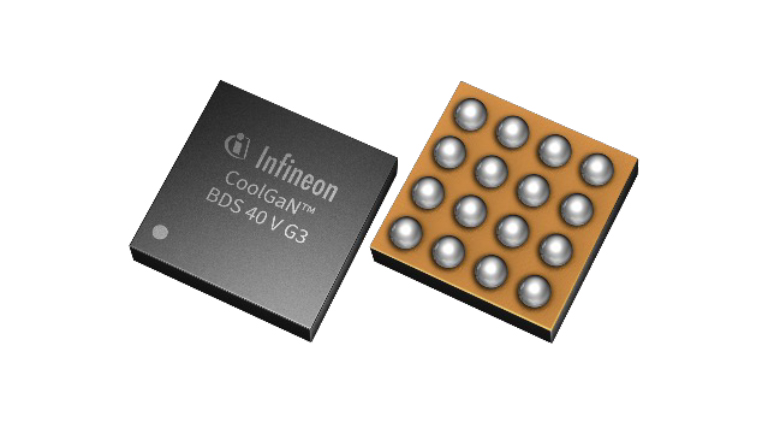

A. IGK080B041S

CoolGaN™ bidirectional switch 40 V G3 in WLCSP, 6 mΩ


Unlock unmatched efficiency with Infineon’s UPS solutions


The IGK080B041S is a 40 V normally-off bidirectional power transistor housed in a small WLCSP 1.7x1.7 package, enabling high power density designs.

Key features:

  • 40 V bidirectional e-mode transistor
  • Drain-to-drain configuration
  • Bidirectional blocking capability
  • Low gate charge, low output charge
  • Qualified according to JEDEC



Learn more   | Download Data Sheet


B. IGLR70R270D2S

CoolGaN™ Transistor 700 V G5


Unlock unmatched efficiency with Infineon’s UPS solutions


The IGLR70R270D2S GaN power transistor allows for increased efficiency at high-frequency operation.
As part of the CoolGaN™ G5 family, it meets the highest quality standards, enabling highly reliable designs with superior efficiency.

Key features:

  • 700 V e-mode power transistor
  • Ultrafast switching
  • No reverse-recovery charge
  • Capable of reverse conduction
  • Low gate charge, low output charge
  • Superior commutation ruggedness
  • Low dynamic RDS(on)
  • High ESD robustness: 2 kV HBM - 1 kV CDM
  • Bottom-side cooled package
  • JEDEC qualified (JESD47, JESD22)



Learn more   | Download Data Sheet

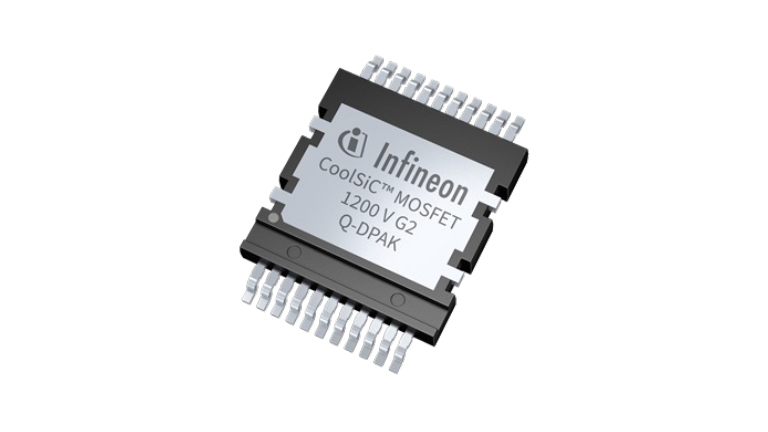

A. IMCQ-120R026M2H

CoolSiC™ MOSFET discrete 1200 V G2 in top-side cooled Q-DPAK package


Unlock unmatched efficiency with Infineon’s UPS solutions


The CoolSiC™ MOSFET discrete 1200 V, 26 mΩ G2 in a top-side cooled Q-DPAK package specifically designed for wide use in industrial application.

Key features:

  • VDSS = 1200 V @Tvj = 25°C
  • IDDC = 58 A @TC = 100°C
  • RDS(on) = 25.4 mΩ @VGS = 18 V, Tvj = 25°C
  • Very low switching losses
  • Overload operation up to Tvj = 200°C
  • Short circuit withstand time 2 µs
  • Benchmark gate threshold voltage
  • Robust against parasitic turn on
  • Robust body diode for hard commutation
  • .XT interconnection technology



Learn more   | Download Data Sheet


B. CoolSiC™ Schottky Diodes 650 V G5 and G6

High efficiency and price performance


Unlock unmatched efficiency with Infineon’s UPS solutions


Infineon's CoolSiC™ Schottky diodes 650 V deliver high price-performance, leveraging advanced silicon carbide production facilities, a solid track record, the upmost quality and a very granular product portfolio.

Key features:

  • No reverse recovery charge
  • Temperature-independent switching behavior
  • High dv/dt ruggedness
  • Improved figure of merit (Qc x VF)



Learn more   | Download Application Note







A. IPT60T022S7

600 V CoolMOS™ S7T SJ MOSFET with integrated temperature sensor in TOLL (PG-HSOF-8) for an increased junction temperature sensing accuracy


Unlock unmatched efficiency with Infineon’s UPS solutions


The CoolMOS™ S7T with embedded temperature sensor increases junction temperature sensing accuracy and robustness while enabling easy implementation.

Key features:

  • Optimized price performance
  • Tailored for low-frequency switching
  • Reduced parasitic source inductance
  • Seamless diagnostics
  • Accurate and fast monitoring over time
  • High current capability
  • High power dissipation
  • Enhanced protection
  • Optimized thermal device utilization



Learn more   | Download Data Sheet


B. 950 V CoolMOS™ PFD7

The next level for ultrahigh power density designs for energy-efficient high power lighting, consumer and industrial SMPS applications


Unlock unmatched efficiency with Infineon’s UPS solutions


The 950 V CoolMOS™ PFD7 high-voltage MOSFET series sets a new benchmark in 950 V superjunction (SJ) technologies, shaped by Infineon’s experience of more than 20 years in pioneering in superjunction technology innovation.

Key features:

  • Integrated ultra-fast body diode with BiC Qrr (reverse recovery charge)
  • Best-in-class FOM RDS(on) x Eoss; reduced Qg, Ciss and Coss
  • Best-in-class  RDS(on) in various packages like 450 mΩ in DPAK or 60 mΩ in TO-247
  • Best-in-class V(GS)th of 3 V and smallest V(GS)th variation of ±0.5 V
  • ESD protection up to class 2 (HBM)
  • Best-in-class quality and reliability



Learn more   | Download Application Note

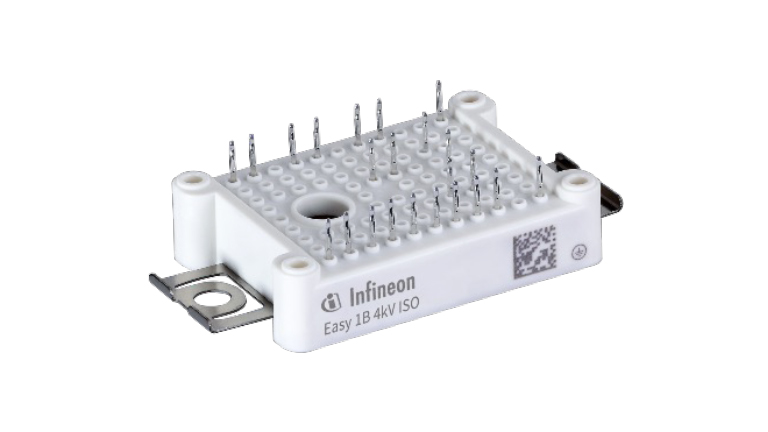

A. Easy Power Modules

EasyPIM™, EasyPACK™ & EasyDUAL™ - from 6 A up to 200 A at 600 V / 650 V / 1200 V


Unlock unmatched efficiency with Infineon’s UPS solutions


The Easy family is the best choice for customers who are looking for a flexible and scalable power module solution.

Key features:

  • Compact module design
  • Reliable mounting system
  • PCB layout-friendly
  • Configuration flexibility
  • High reliability and quality





Learn more   | Download Data Sheet


B. IGBT7 Modules

950 V/1200 V TRENCHSTOP™ IGBT7 - Higher power density and optimized switching


Unlock unmatched efficiency with Infineon’s UPS solutions


The 950 V/1200 V TRENCHSTOP™ IGBT7 and EC7 diode technology is based on latest micro-pattern trenches technology which provide strongly reduced losses and offer a high level of controllability.

Key features:

  • Overload capacity
  • Lower on state voltage
  • Enhanced controllability
  • Improved diode



Learn more   | Download Application Note

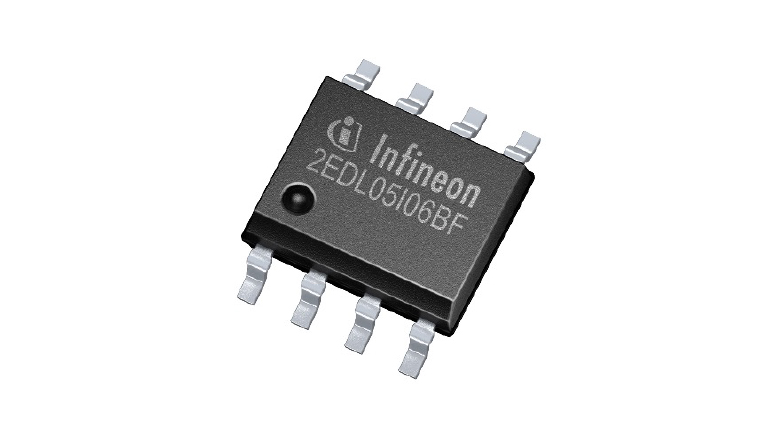

A. 2EDL05I06BF

600 V half-bridge gate driver IC with integrated bootstrap diode


Unlock unmatched efficiency with Infineon’s UPS solutions


EiceDRIVER™ Compact - Optimized 600 V half-bridge gate driver IC with LS-SOI technology to control IGBTs.

Key features:

  • Individual control circuits for both outputs
  • Filtered detection of under voltage supply
  • All inputs clamped by diodes
  • Off line gate clamping function
  • Asymmetric undervoltage lockout thresholds for high side and low side
  • Insensitivity of the bridge output to negative transient voltages up to -50V given by SOI-technology
  • Ultra fast bootstrap diode





Learn more   | Download Data Sheet

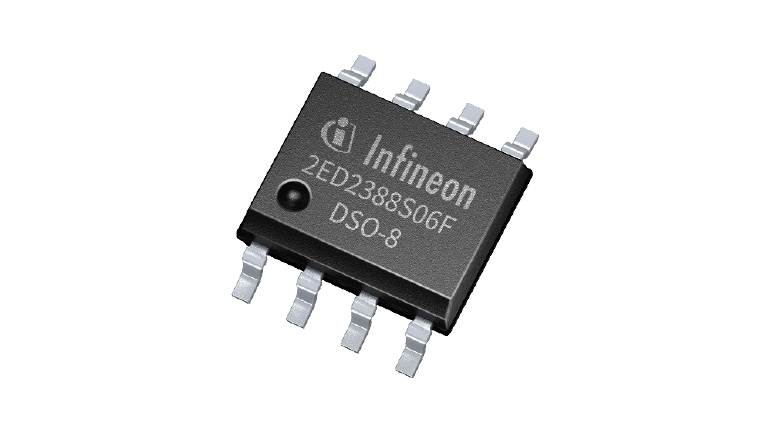

B. 2ED2388S06F

650 V half-bridge gate driver with integrated bootstrap diode


Unlock unmatched efficiency with Infineon’s UPS solutions


650 V high speed, half-bridge gate driver with typical 0.29 A source and 0.7 A sink currents in DSO-8 package for driving power MOSFETs and IGBTs.

Key features:

  • Operating voltages (VS node) up to + 650 V
  • Negative VS transient immunity of 100 V
  • Integrated ultra-fast, low resistance bootstrap diode
  • 90 ns propagation delay
  • HIN, LIN logic input
  • Floating channel designed for bootstrap operation
  • Independent under voltage lockout (UVLO) for both channels
  • Logic operational up to –11 V on VS Pin
  • Negative voltage tolerance on inputs of –5 V
  • Maximum supply voltage of 25 V
  • 3.3 V, 5 V and 15 V input logic compatible



Learn more   | Download Application Note
