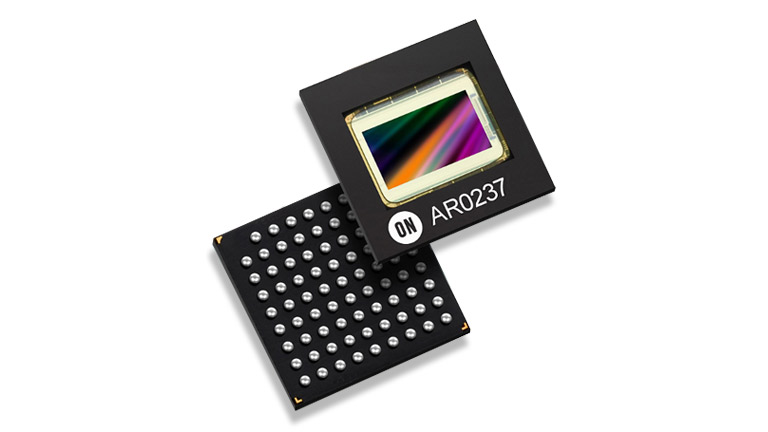

AR0237 RGB-IR

The AR0237 RGB-IR is a 1/2.7-inch CMOS digital image sensor with an active-pixel array of 1928 (H) x 1088 (V). It captures images in either linear or high dynamic range modes with a rolling-shutter readout, and includes sophisticated camera functions such as in-pixel binning, windowing and both video and single frame modes.

It is designed for both low light and high dynamic range scene performance, and is programmable through a simple two-wire serial interface. The AR0237 RGB-IR integrates the ability to take daytime color imaging and nighttime near-IR imaging in one sensor without the need for a mechanical IR-cut filter which can be loud, large, cause refocusing issues and expensive to maintain , and ideal for home security and other monitoring applications where lighting conditions can change drastically during the times when the camera is expected to work.

Features:

• Superior low-light performance
• DR-PIX (TM) technology with Dual Conversion Gain
• Full HD support at up to 1080p 60 fps for superior video performance
• Linear or high dynamic range capture
• On-chip phase-locked loop (PLL) oscillator
• Supports line interleaved T1/T2 readout to enable HDR processing in ISP chip
• Support for external mechanical shutter
• Integrated position-based color and lens shading correction
• Slave mode for precise frame-rate control
• Stereo/3D camera support
• Statistics engine
• Four-lane serial high-speed pixel interface (HiSPi), differential signaling (SLVS and HiVcm), or parallel data interface
• Auto black level calibration
• High-speed configurable context switching
• Temperature sensor
• Support 4 x 4 RGB-IR pixel pattern

Target applications

• Video surveillance
• 1080p60 (Surveillance) video applications
• High dynamic range imaging
• Home security

Benefits

• Superior low-light performance
• Includes sophisticated camera functions such as in-pixel binning, windowing and both video and single frame modes.
