Teseo-VIC3DA
GNSS modules
Automotive GNSS dead reckoning module with 6-axis IMU

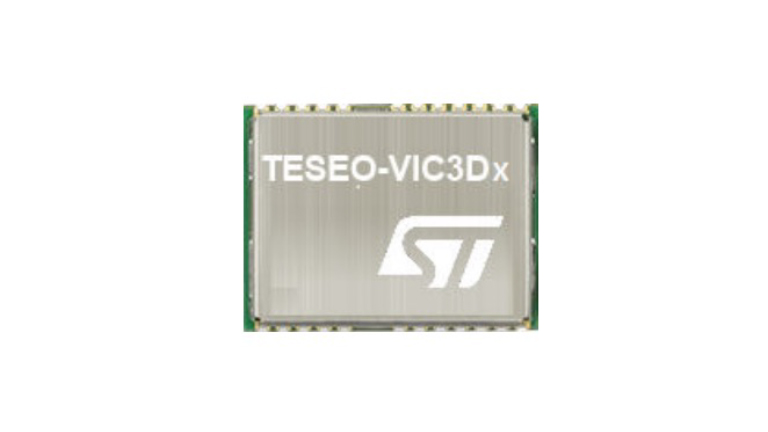

Teseo-VIC3DA and Teseo-VIC3D modules are an easy to use dead-reckoning Global Navigation Satellite System (GNSS) standalone module, embedding TeseoIII single die standalone positioning receiver IC working simultaneously on multiple constellations (GPS/Galileo/Glonass/BeiDou/QZSS).
The Teseo-VIC3Dx module brings the proven accuracy and robustness of TeseoIII chip to the reach of everyone: the embedded firmware and the complete evaluation environment save development time.
Within its 16.0 mm x 12.2 mm size, Teseo-VIC3Dx is offering superior accuracy thanks to the on board Temperature Compensated Crystal Oscillator (TCXO) and a reduced Time To First Fix (TTFF) relying on its dedicated Real Time Clock (RTC) oscillator. Thanks to the embedded flash Teseo-VIC3Dx offers many extra features such as 7 days Autonomous Assisted GNSS, Predictive Assisted GNSS and Real-Time Assisted GNSS.
Teseo-VIC3Dx supports FW configurability as well as FW upgrades. Teseo-VIC3Dx module, being a certified solution, optimizes the time to market of the final applications with a temperature operating range from -40 °C to +85 °C.
Teseo-VIC3DA is AEC-Q100 qualified for automotive application.
Features
- AEC-Q100 qualified (Teseo-VIC3DA)
- Simultaneous multiconstellation
- Teseo dead-reckoning automotive way firmwar
- Embedded flash for FW upgrade
- Automotive GNSS and 6-axis inertial sensor
- LCC 24 pins package (16.0 mm x 12.2 mm x 2.42 mm)
- Free FW configuration
Applications
- In-car navigation
- Fleet management
- Insurance black boxes
Benefits
- 1.5 m CEP positioning accuracy
- 17 μA standby current and 193.38 mW tracking power consumption
- 7-day Autonomous Assisted GNSS and Real-Time Assisted GNSS as well as firmware configurability and overthe-air (OTA) upgrades

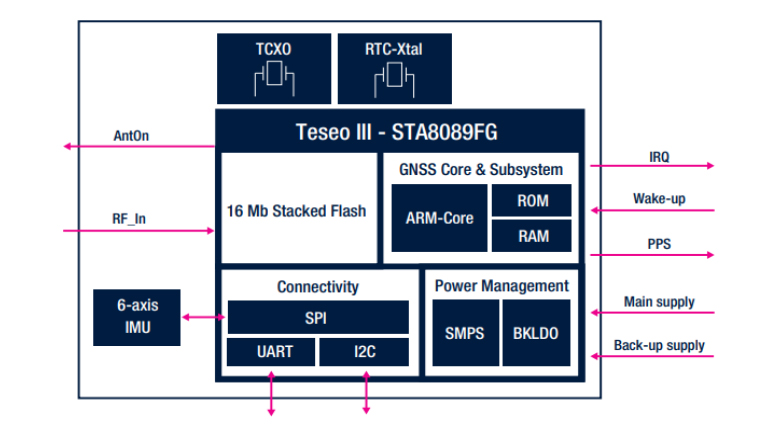

Block diagram
Description of Above Graphic
Pinout and block diagram
