16V, Quad 25A, Scalable, DC/DC Power Module with PMBus

MPM82504

MPS MPC1100C-54-0002, 300W, Digital DC/DC Power Module

The MPM82504 is a quad 25A, scalable, fully integrated power module with a PMBus interface. The device offers a complete power solution that achieves up to 25A per output channel. The MPM82504 has four output channels that can be paralleled to provide 50A, 75A, or 100A of output current for flexible configurations. The device can also operate in parallel with the MPM3695-100 and additional MPM82504 devices to provide a higher output current. The MPM82504 operates at high efficiency across a wide load range.

The device utilizes MPS’s proprietary, multi-phase constant-on-time (MCOT) control, which provides ultra-fast transient response and simple loop compensation. The PMBus interface enables flexible digital configurations and monitoring of key parameters.

Full protection features include over-current protection (OCP), over-voltage protection (OVP), under-voltage protection (UVP), and over-temperature protection (OTP).

The MPM82504 requires a minimal number of readily available external components. It is available in a BGA (15mmx30mmx5.18mm) package.


Features

  • 3.2V to 16V Input Voltage Range with External 3.3V VCC Bias
  • 4V to 16V Input Voltage Range with Internal VCC Bias
  • 0.5V to 3.3V Output Voltage Range
  • Four Parallelable Output Channels with Up to 25A per Channel
  • Parallel Operation with Multiple MPM82504 and MPM3695-100 Devices
  • Auto-Interleaving for Multi-Phase Operation
  • Individual Remote Sense for Each Channel
  • PMBus 1.3 Compliant
  • Telemetry Readback including VIN, VOUT, IOUT, Temperature, and Faults for Each Channel
  • Each Channel Is Configurable via the PMBus:
  • Output Voltage, Soft-Start Time
  • Over-Current, Over-Temperature, Over-Voltage, Under-Voltage, and UVLO Limits
  • PWM Mode and Switching Frequency
  • Available in a BGA (15mmx30mmx5.18mm) Package



Applications

  • Edge AI
  • High energy efficient power management

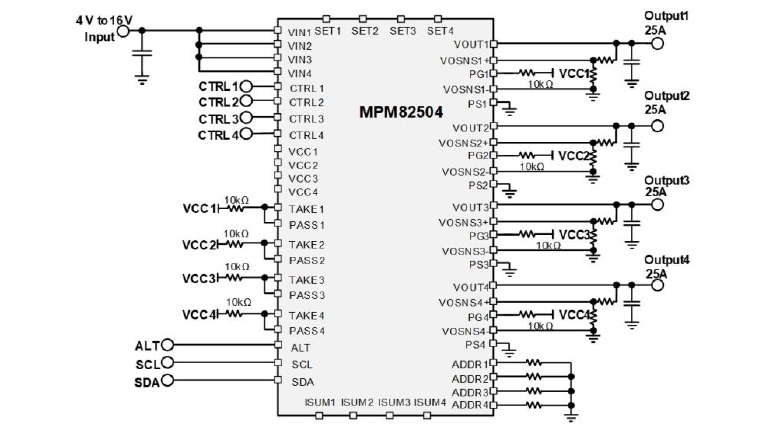

Block Diagram
