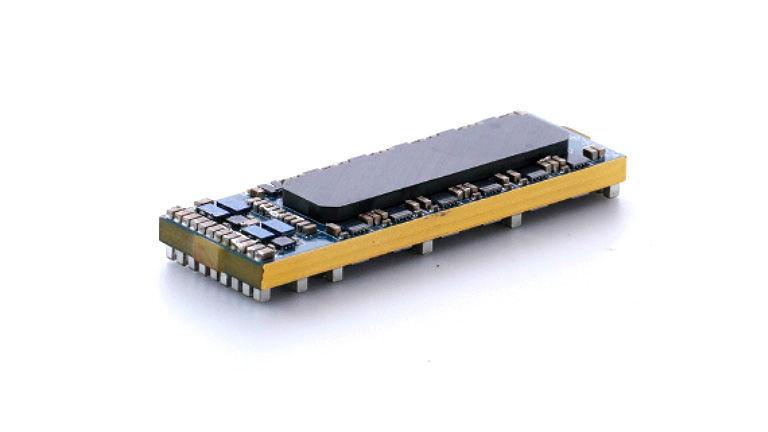

MPC11057-54-0750-0100
Digital 10:1 750W DC/DC Power Module
The MPC11057-54-0750-0100 is a high-efficiency, non-isolated LLC-DCX power module with a fixed 10:1 ratio. It operates from a 40V to 60V DC primary bus voltage, and can deliver a 4V to 6V output voltage (VOUT) and up to 750W of continuous power at a typical 54V input voltage (VIN).
The MPC11057-54-0750-0100 employs MPS’s MP2981 digital LLC controller and MP8501 smart synchronous rectifier (SR), which can adjust the pulse-width modulation (PWM) to optimize resonant frequency operation.
The built-in multiple-time programmable (MTP) memory can store and restore device configurations. The fault status, VIN, VOUT, current, and temperature can be easily monitored via the PMBus/I2C interface. The MPC11057-54-0750-0100 is available in a surface-mount (3mmx18mmx6.8mm) package.
Features
- Supports Up to 139A Continuous Load Current
- PMBus/I2C Interface
- Built-In Non-Volatile Memory (NVM) to Store Custom Configurations
- Input Voltage (VIN), Output Voltage (V`OUT), Output Current (IOUT), Output Power (POUT), and Temperature Monitoring
- VIN Under-Voltage Lockout (UVLO), Output Over-Voltage Protection (OVP) and Under-Voltage Protection (UVP), Over-Current OCP_TDC/OCP_SPIKE Protections, and Over-Temperature Protection (OTP)
- Available in a Surface-Mount (53mmx18mmx6.8mm) Package
Application
- Data Center
- DC Power Distribution
- High End Computing Systems
