Microwave Coaxial connectors with switch SWJ Type

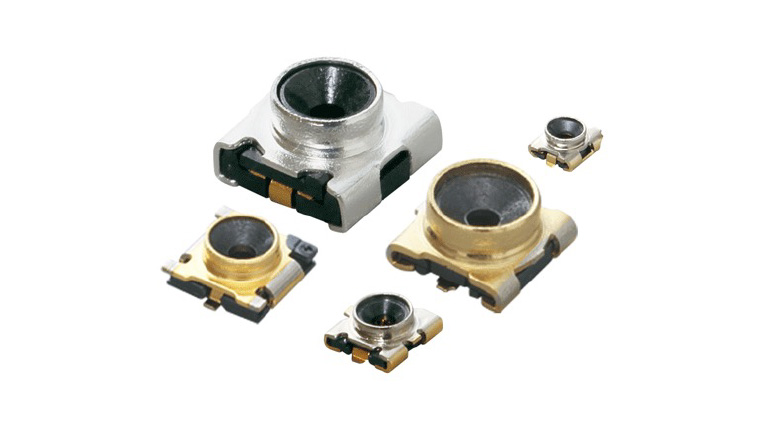

Murata offers a variety of connectors:
- Switch connector to measure RF circuit.
- Board to Board connector to transmit high frequency signals from board to board with low loss.
Microwave Coaxial Connectors with Switch SWJ Type: the RF circuit and ANT characteristics can be measured by mounting in an RF transmission line.
Features
- Small-size microwave coaxial connector with switch is very useful for electrical characteristics measurement of microwave circuit for cellular phone and small wireless equipment such as wearable equipment.

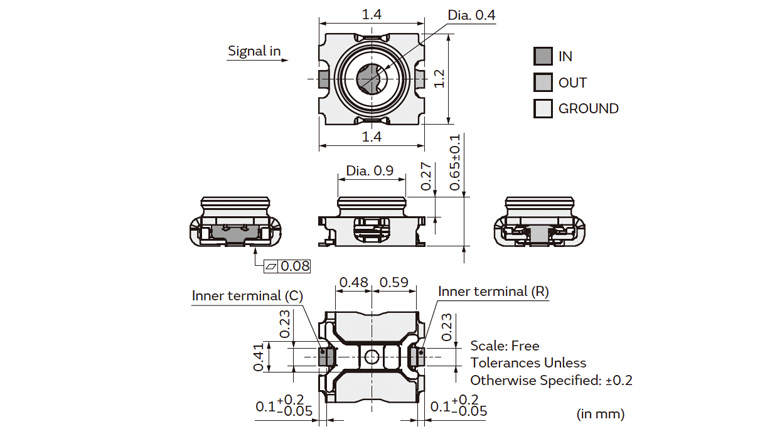

- Size 1.4x1.2x0.65mm (LxWxH), Occupation area 1.68mm2
- Excellent characteristics, low IL 0.2dB max. (@6GHz), 0.7dB max. (@9GHz) V.S.W.R. 1.2 max. (DC to 8GHz), 1.3 max. (8GHz to 9GHz)
- Connector durability is 50 cycles with probe.
Applications
- Cellular phone
- Wearable equipment
- Other wireless equipment.
Key components
Benefits
- Contributing to more efficient circuit measurements. Introduction to our switch connectors.
- Switch connectors are found in communication equipment of all types. They are widely used for circuit measurements on manufacturing lines.
- Microwave Coaxial Connectors with Switch SWJ Type has small size, and probe test solution in narrow pitch.
