NRF5340
Dual-core bluetooth 5.2 SoC supporting Bluetooth LE
The nRF5340 is the world’s first wireless SoC with two Arm® Cortex®-M33 processors. The combination of two flexible processors, the advanced feature set, and an operating temperature up to 105 °C, make it the ideal choice for LE Audio, professional lighting, advanced wearables, and other complex IoT applications.
The nRF5340 is an all-in-one SoC, including a superset of the most prominent nRF52® Series features. Features like Bluetooth® 5.2, high-speed SPI, QSPI, USB, up to 105 °C operating temperature, and more, are combined with more performance, memory and integration, while minimizing current consumption.
Features

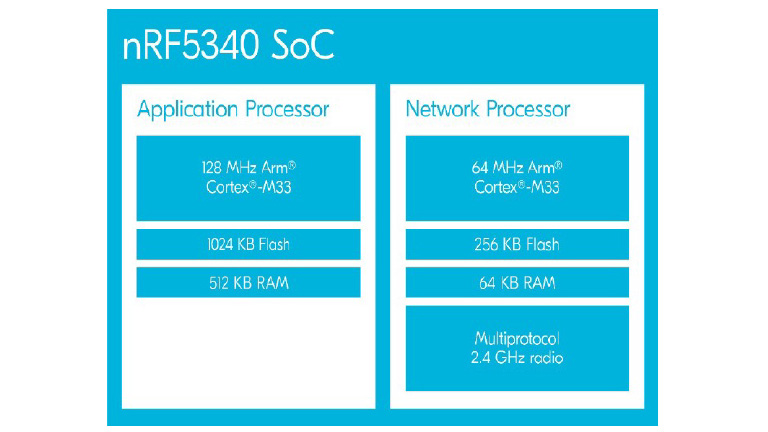

- 128/64 MHz Arm Cortex-M33 application processor with 1 MB Flash & 512 KB RAM
- 64 MHz Arm Cortex-M33 network processor with 256 KB Flash & 64 KB RAM
- Bluetooth Low Energy
- Bluetooth Direction Finding
- Bluetooth mesh, Thread, Zigbee
- NFC
- Advanced security
- USB, QSPI, HS-SPI
- 105 °C extended operating temperature
- 1.7-5.5 V supply voltage range
Applications
- LE audio
- Professional lighting
- Industrial
- Advanced wearables
- Medical
- Smart home
- Asset tracking and RTLS
Benefits
- Improved efficiency
- Multi-core flexibility
- All-in-one
