RM50xQ
Quectel 5G module

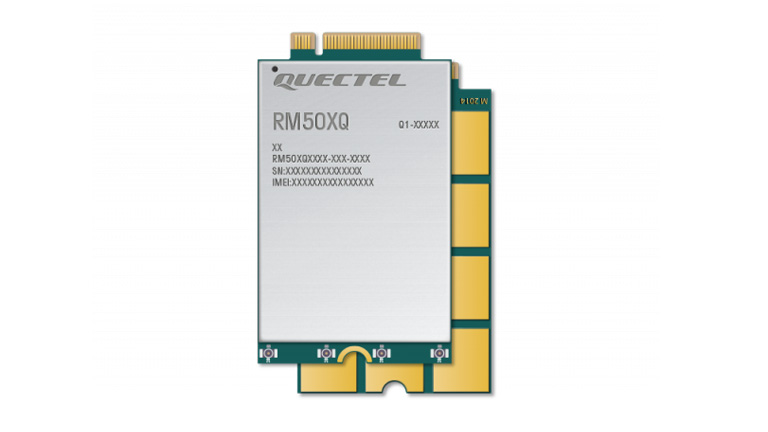

Quectel RM50xQ is a 5G sub-6GHz M.2 module measuring 52.0mm × 30.0mm × 2.3mm which supports both standalone (SA) and non-standalone (NSA) modes. The module achieves maximum downlink rates of 2Gbps and uplink rates of 900Mbps under SA mode and maximum downlink rates of 5Gbps and uplink rates of 650Mbps under NSA mode. The module supports multiple-input multiple-output (MIMO) technology which greatly reduces errors and optimizes data speed, and optionally features integrated GNSS (GPS/GLONASS/BeiDou/Galileo) for rapid and precise positioning.
Features
- Supports both NSA and SA modes
- Supports MIMO
- USB 3.1 / PCIe 3.0 high speed interface
- Multi-constellation GNSS receiver available
- Feature refinements: DFOTA and VoLTE (optional)
Applications
- Business routers
- Home gateways
- Consumer laptops
- Industrial PDAs
- Tablet PC
- Digital signage
