Printer solution with advanced capabilities
With the rising trend of miniaturizing printers, the use of BLDC motors with intelligent system applications - including intelligent detection, cloud connectivity and a richer human-machine interface - will become a core value for system designs. Renesas’ mini printer solution integrates these required features for customers and enables dual BLDC control, a rich human-machine interface, and secure cloud connectivity. In addition, the entire solution demonstrates lower power consumption and higher stability by using Renesas' high-performance power supply and analog devices.
System benefits:
- The RA6M3 MCU features high-performance connectivity, which includes an Ethernet/USB/SD card, as well as an LCD controller and real-time system control
- The RX24T MCU enables dual BLDC control
- High-performance buck power, sensor, and MOSFET drivers for system control and stability
Recommended products
| Products | Description | Documents |
|---|---|---|
| Microcontroller | ||
| RA6M3 | 120MHz Arm® Cortex®-M4 core with USB High-Speed, Ethernet and TFT controller | Datasheet |
| RX24T | 32-bit MCU including on-chip FPU enable to drive two motors simultaneously | Datasheet |
| Half-Bridge Driver | ||
| HIP2103 | 60V, 1A/2A peak, half-bridge driver with 4V UVLO | Datasheet |
| Buck Regulator | ||
| RAA212422 | Wide VIN 1.1A with low VIN 1.5A synchronous buck regulator | Datasheet |
| Sensor | ||
| ISL29033 | Ultra-low lux, low power, integrated digital ambient light sensor with interrupt function | Datasheet |

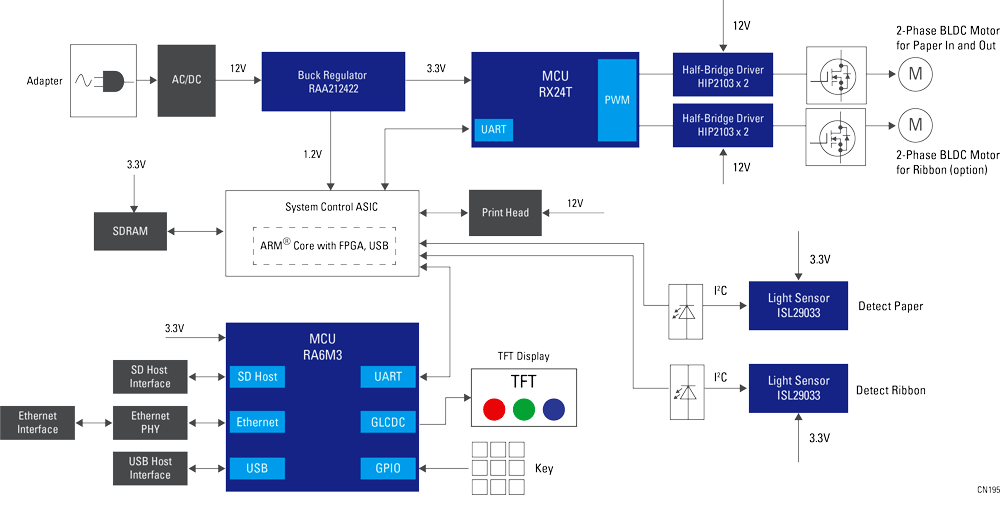

System block diagram
