Leverage GPS, cellular, Bluetooth and battery backup
The global vehicle tracking market is expected to grow at a CAGR of 19.9%, a size of $14.9 billion in 2025. The solutions are as diverse as the vehicles they track, but they all incorporate technologies such as GPS, cellular, computers, hardware interfaces, and others.
This winning combination shows a possible solution with GPS, cellular, Bluetooth® and battery backup capabilities using Renesas’ RA6 MCU.
System Benefits:
- The highly-integrated Arm® Cortex®-M4 120MHz RA6M3 MCU is the communications hub for this system
- Features a full power map, with Renesas’ single cell battery charger (ISL9301), high efficiency buck-boost regulator (ISL91107) and LDO (ISL9001)
- BLE communication solution with Renesas’ BTM01 Bluetooth® Module
Recommended products
| Products | Description | Documents |
|---|---|---|
| Microcontroller | ||
| RA6M3, R7FA6M3AH3CF | 120MHz Arm® Cortex®-M4F core with USB High-Speed, Ethernet and TFT controller | Datasheet |
| RL78/G1D | Bluetooth® Low Energy microcontrollers for smart connectivity | Hardware User's Manual |
| Battery Charger | ||
| ISL9301 | High input voltage charger with power path management | Datasheet |
| Buck-Boost Regulator | ||
| ISL91107 | High efficiency buck-boost regulator with 3.6A switches | Datasheet |
| LDO | ||
| ISL9001A | LDO with low ISUPPLY, high PSSR | Datasheet |
| Level Translator | ||
| ISL3034E | 6-channel high speed, auto-direction sensing logic level translator | Datasheet |
| Op Amp | ||
| EL5420 | 12MHz rail-to-rail input-output op amps | Datasheet |
| Transceiver | ||
| ISL3232E | QFN packaged, ±15kV ESD protected, +2.7V to +5.5V, 150nA, 250kbps, RS-232 transmitters/receivers | Datasheet |
| Optocoupler | ||
| PS2801C-4 | High isolation voltage SSOP photocoupler | Datasheet |

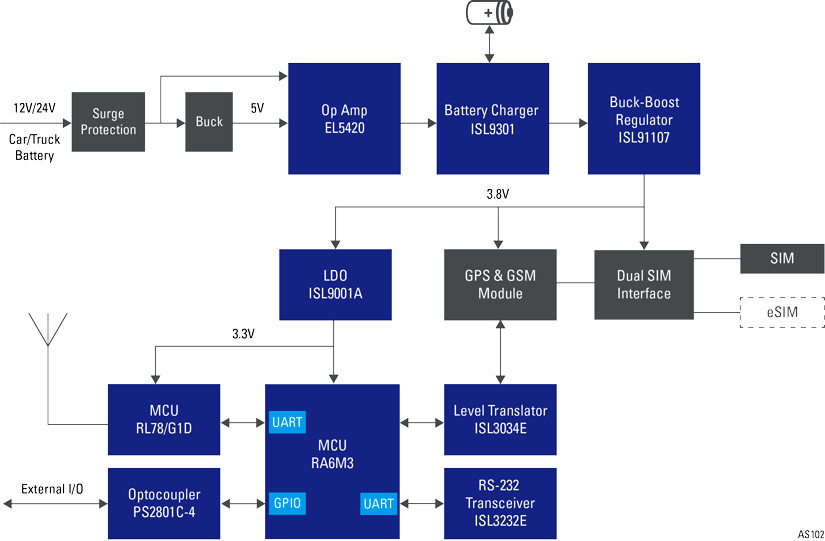

System block diagram
