4-20mA current loop system for industrial control

Sub Navigation

Mixed Media

Sensor receiver solution built around RA2A1 microcontroller

The 4-20mA current loop is the dominate standard for sensor systems in many industries, primarily because it is the simplest option to configure and connect. It also uses less wiring and connections than other signals, therefore reducing overall system cost. In addition, in large locations, it is better for traveling long distances, since current doesn't degrade like voltage does.

This winning combination shows a possible receiver solution with Renesas’ precision digital power monitor (DPM), stable power source and low power processing capabilities of the Arm® Cortex-based RA2A1 MCU.

System Benefits:

  • Low power and signal processing features of Renesas’ RA2A1 Arm® Cortex®-M23 microcontroller
  • Precision digital power monitoring with the ISL28022 and low current consumption
  • Stable voltage from Renesas’ ISL9001A for low-noise and high-PSRR applications
Man standing in power management room

Long Copy

Recommended products

Products Description Documents
Microcontroller
RA2A1 48MHz Arm® Cortex®-M23 core with integration of a 24-bit sigma-delta ADC Datasheet
Digital Power Monitor
ISL28022 Precision digital power monitor Datasheet
LDO
ISL80101A High performance 1A linear regulator with programmable current limiting Datasheet

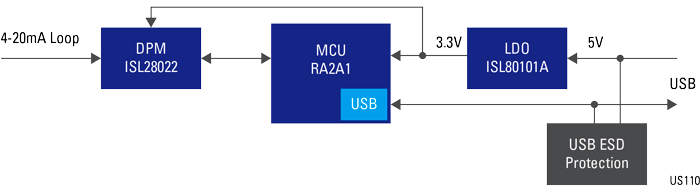

System block diagram



block diagram
