New Product Introduction

Intel® NUC 8 Pro Compute Element "Chandler Bay"

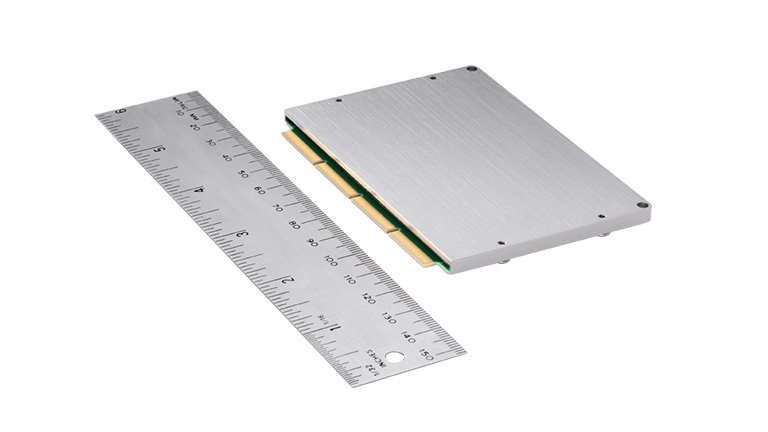

The Intel NUC 8 Compute Element measures just 3.7 x 2.6 x 0.2 inches (95 x 65 x 6mm), available with a choice seven of different Intel processors.

Intel Atom® E3900 processor - top side

Intel® NUC Elements are an entirely new way to design and build solutions and Mini PCs. The Intel® NUC Compute Element along with a series of Intel-designed components, deliver the flexibility of modular computing.

Family features

  • Intel® Wireless-AC 9560 soldered-down, 802.11ac 2x2 1.73Mbps + Bluetooth® 5
  • 4 to 8GB soldered-down, dual-channel Memory
  • Select SKUs with 64GB eMMC Storage
  • Windows 10 & Linux operating systems supported
  • I/O supported by the card-edge consolidated connector:
    • 4 USB 3.1
    • 3 USB 2.0
    • 2 x DDI (configurable as DP/HDMI)
    • 1 x eDP
    • 1 x GbE PHY
    • 1 x PCIe x4/SATA
    • 1 x PCIe x4
    • 1 x PCIe x1
    • 1 x HD Audio
    • eSPI (EC interface)
  • Support for up to triple 4k@60Hz displays (dual DDI plus eDP interfaces)
  • Generation agnostic heat-spreader thermal interface
  • Supports integration in to both stationary and mobile system designs
  • Module dimensions: 95 x 65 x 6 mm
  • No moving parts
  • Qualified for 24x7 operation
  • Three Year Product Life Cycle
  • Three Year Warranty

Available processors

8th Generation Intel® Core™ i7-8665U (CM8v7CB)
1.9 GHz – 4.8 GHz Turbo, 4 Core, 8 Thread, 8MB Cache, 15W
Intel® vPro™ Technology, Intel® AMT, TPM 2.0
Intel® UHD Graphics 620, 300 MHz - 1150 MHz

8th Generation Intel® Core™ i7-8565U (CM8i7CB)
1.8 GHz – 4.6 GHz Turbo, 4 Core, 8 Thread, 8MB Cache, 15W
Intel® UHD Graphics 620, 300 MHz - 1150 MHz

8th Generation Intel® Core™ i5-8365U (CM8v5CB)
1.6 GHz – 4.1 GHz Turbo, 4 Core, 8 Thread, 6MB Cache, 15W
Intel® vPro™ Technology, Intel® AMT, TPM 2.0
Intel® UHD Graphics 620, 300 MHz - 1100 MHz

8th Generation Intel® Core™ i5-8265U (CM8i5CB)
1.6 GHz – 3.9 GHz Turbo, 4 Core, 8 Thread, 6MB Cache, 15W
Intel® UHD Graphics 620, 300 MHz - 1100 MHz

8th Generation Intel® Core™ i3-8145U (CM8i3CB)
2.1 GHz – 3.9 GHz Turbo, 2 Core, 4 Thread, 4MB Cache, 15W
Intel® UHD Graphics 620, 300 MHz - 1000 MHz

Intel® Pentium® Gold 5405U (CM8PCB)
2.3 GHz, 2 Core, 4 Thread, 2MB Cache, 15W
Intel® UHD Graphics 610, 300 MHz - 950 MHz

Intel® Celeron® 4305U (CM8CCB)
2.2 GHz, 2 Core, 2 Thread, 2MB Cache, 15W
Intel® UHD Graphics 610, 300 MHz - 900 MHz



Technical Specifications
Essentials Product Collection: Intel® NUC Compute Elements
Board Form Factor: U-Series Compute Element (95 x 65 x 6 mm)
Processor Included: Whiskey Lake
Memory & Storage Included Memory : 4GB, 8GB
Memory Types: LPDDR3-2133
Max # of Memory Channels: 2
ECC Memory Supported: No
Integrated Graphics: Yes
I/O Specifications Integrated Wireless: Intel® Wireless-AC 9560 + Bluetooth 5.0
Integrated Bluetooth: Yes
Advanced Technologies Intel® Virtualization Technology for Directed I/O (VT-d): Yes
Intel® Virtualization Technology (VT-x): Yes
Security & Reliability Intel® AES New Instructions: Yes
