New Product Introduction

Intel® NUC 8 Rugged

The Intel® NUC 8 Rugged is built to last and qualified for 24x7 sustained operations—a critical feature for most IoT and commercial operations.

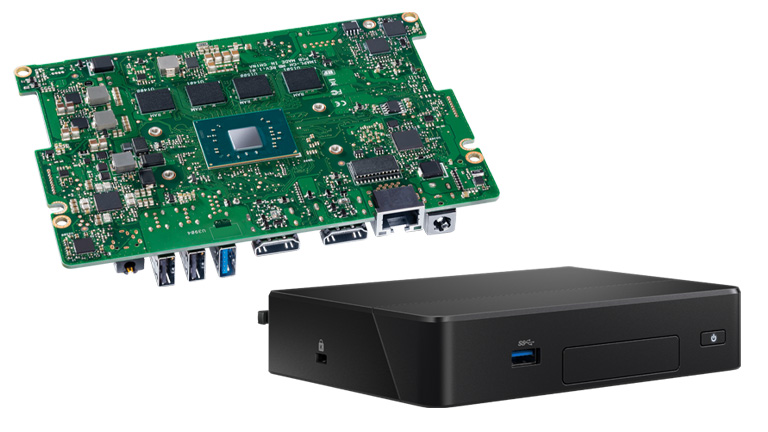

Intel NUC 8 Rugged box content - kit and board

Intel® NUC 8 Rugged is a PC kit that’s small on size but not on toughness or reliability. It features a fanless, ventless design to minimize particle intrusion, so it’s built to survive environments most PCs can’t—from a busy factory floor to a dusty warehouse. And even without a fan, it can operate in temperatures from 0-40˚C to thrive in severe in-the-field conditions.

Housed in a small chassis that’s slim enough to fit almost anywhere, the NUC 8 Rugged is also available as a board-only option that can be easily integrated into your own digital solutions. It’s powered by an Intel® Celeron® processor, making it the ideal PC solution to keep edge analytics, digital signage, or surveillance cameras up and running around the clock. And with a 3-year warranty, it’s performance that’s designed to last.



Features

  • Intel® Celeron® processor
  • Fanless and ventless design
  • Minimal dust intrusion
  • Qualified for 24x7 operation
  • Multiple mounting options
  • Dual HDMI
  • 2 USB 3.0 ports
  • 2 USB 2.0 ports
  • Internal 4-lane eDP connector
  • Intel® Wireless-AC
  • Bluetooth® technology
  • Intel® Gigabit LAN
  • 3-Year limited warranty



Applications

  • Digital signage
  • Hospitals
  • Medical clinics for mobile pedestal computing
  • IoT
  • Operator consoles in manufacturing environments
  • Quick service restaurants
  • Edge analytics



Availability

Intel® NUC Kit
Intel® NUC Board



Intel® NUC 8 Rugged Kit and Board

Fanless and ventless, the Intel® NUC 8 Rugged isn’t afraid to get a little dirty.

  Kit Board
  NUCCCHKR NUC8CCHB
Processor Intel® Celeron® processor N3350
Graphics Intel® HD Graphics 500
Memory 4 GB RAM
Storage 64 GB eMMC soldered-down; M.2 2280 key M slot for PCIe x4 NVMe or SATA SSD
Mounting Options VESA mounting holes, picture frame keyholes, zip-tie indentations, 3rd party DIN rail bracket, Kensington lock with base security -
Other Features & Technology Dual HDMI, Qualified for 24x7 operation; delayed AC start; DC overvoltage protection, DC cable strain relief, Internal 4-lane eDP connector, Front panel expansion bay, 3-year warranty
Operating System Supports Microsoft Windows 10 Pro, Windows 10 IOT Enterprise, Compatible with various Linux distros
What’s Needed 22x80 PCIe x4 NVMe or SATA SSD, Operating System -
